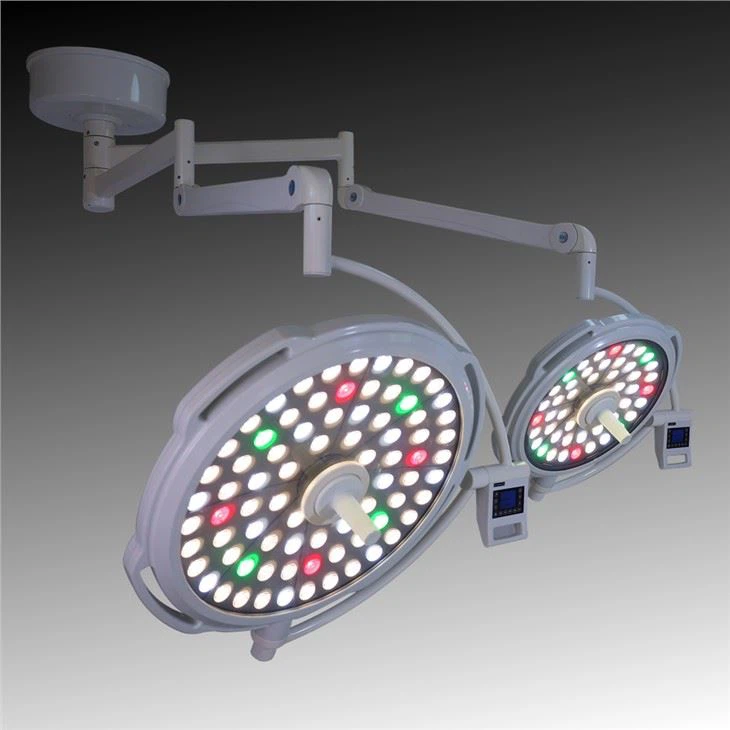

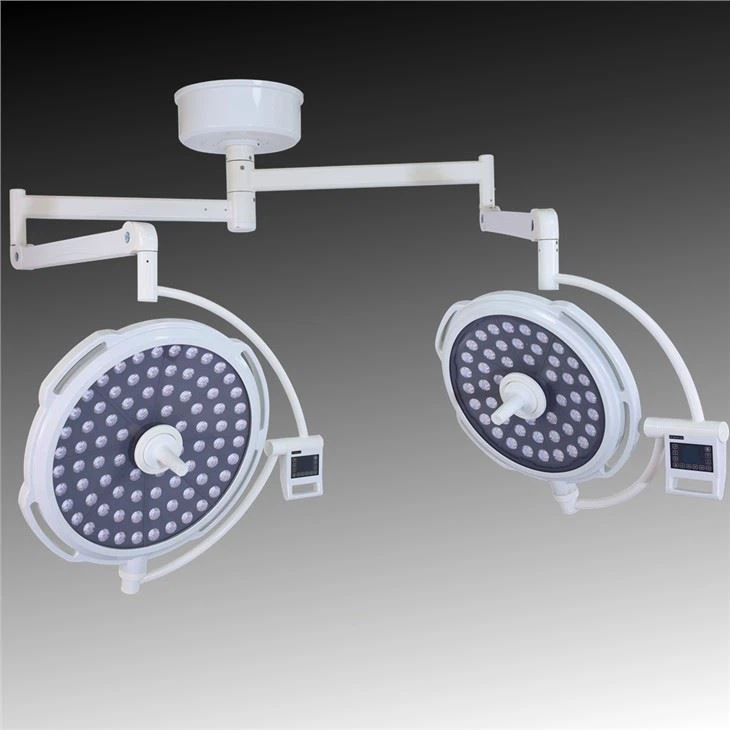

LED Surgical Lamp

Model: YDE700/500 B Name:LED Surgical Lamp Features Unique LED technology available,the YDE500/700 series of Dual Ceiling Mounted Medical Operating lamp have been designed to caters to all kinds of LED lighting Optional: HD camera, SD camera and Endoscopy type Double traverse technique .Greater...

Send InquiryChat Now

Model: YDE700/500 B
Name:LED Surgical Lamp

Features

 Unique LED technology available,the YDE500/700 series of Dual Ceiling Mounted Medical Operating lamp have been designed to caters to all kinds of LED lighting
 Optional: HD camera, SD camera and Endoscopy  type
 Double traverse technique .Greater light output is 2 or 3 times higher than other lights, clear spot profile and uniform illumination to deep cavity procedures. Ergonomic layout of LED beads.

YDE500/700,contains 45+60 LEDs providing 190,000 Lux. 90% of LED is made of aluminum, these materials can be recycled.
 Stable base control can maintain balance for complete lamp
 Advanced threading technology can offer further life for lamp working
 Standby handle for head can help doctor to move head flexibility

 Introduction

 1.YUDA medical as the largest medical equipment suppliers in North China, YUDA Medical series LED medical lighting with a dedicate view to bring expertise in surgical lighting, it comes from the demands for safety, efficiency and economy (operation costs).

 2.Fully hygienic: Curve and smooth surface. Striking sleek lines without cutting edges. Shock resistant coating.

 3. New cold LED light source:Lowest ultraviolet and infrared in light spectrum, temperature rising less than 2 ℃. Aviation aluminum material, greater heat dissipation.
 4 Stable base control can maintain balance for complete lamp
 5 Advanced threading technology can offer further life for lamp working
 6 Standby handle for head can help doctor to move head flexibility

Light

Diameter of light head

500mm


Diameter of light head

700mm


Luminance (Lux)@1m

120,000- 190,000 Lux


Light field diameter (d50)

120 to 350mm


Number of LEDs

45- 60

color

Color field temperature (K)

4300+-500K


Color render Index (Ra)

>95


Color render Index (R9)

>96

other

Temperature raise on Surgeon

<1℃


Standard installation height

2.7-3.3m


Radiated UV energy with wavelength less    than 400nm (w/m2)

<0.002

power

Input rating

220V, 50Hz


LED power

1w×45, 1w×60


Average working life

>100,000 hours

About our lamps
 At first, we have exported lamps to Europe countries sincere 2005 .
 We get great success for lamp market.
 Unique design, strict control quality, high standard inspection .
 Some successful orders from big hospital
 Try to be the first to be my agent
Old customer with more than 10 years
