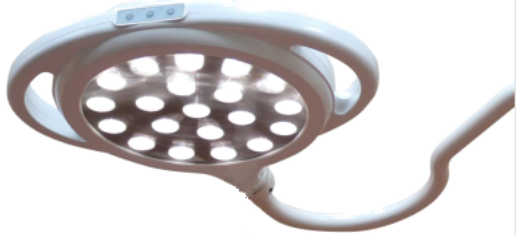

Medical Examination Light Wall Mounted

Model: YDE300 wall mount type Name: Medical examination light wall mounted Features Surgical Light---300 diameter ( 11.8 in). The YDE300 with a unique and portable design caters to modern surgical instrument and doctor surgeons. It has been specifically designed for minor procedures under local...

Send Inquiry

Model:  YDE300 wall mount type
Name: Medical  examination light wall mounted

Features
 Surgical Light---300 diameter ( 11.8 in). The YDE300 with a unique and portable design caters to modern surgical instrument and doctor surgeons. It has been specifically designed for minor procedures under local anesthetic in health centers, GP surgeries and outpatient departments.

YUDA LED lamp is made up of aluminum and aviation plastic, the materials can be recycled, which is clean technology. Concise packaging is economic for transportation, with 0.3 CBM for one YDE300.




 Introduction
 1. YUDA medical is started from 1992 years, on 2001 year YUDA started the operating room series. As the largest medical  equipment manufacture in North China, YUDA Medical series LED medical lighting  with a dedicate view to bring expertise in surgical lighting, it comes from the demands for safety, efficiency and economy (operation costs).
 2.Adopted advanced LED technology, achieve depth of illumination , color temperature and render indication index in harmony and unity.
 3.Germany Osram beads, 20 LEDs layout.
 4. French Gaggione lens, given a harmony illumination of LED lighting.
 5. Soft natural light with a color rendering index of 96 Ra.
 5. Indirect light that eliminates shadows and guarantees lower irradiated heat in the operating field.



Technical data

unit

300 lamp head

Lamp head diameter

mm

300mm (11.8 in)

illumination

Lux

60,000-120,000

Color temperature

K

3600-5000

Color Rendering Index ( CRI)

Ra

90

Number of LEDs


20

Illuminance depth

cm

80

Illuminance adjusting range

%

25-100

Ultraviolet irradiance wavelength under 40nm

W/㎡

≤0.002

Focal distance adjusting mode


Manual/electric(optional)

Beads power

W

1W/unit×20beads

Power supply


110V/220V  50Hz/60Hz

Input power

W

50

LED average life

H

≥100,000

Installation ceiling height

m

2.8(adjustable)

FAQ:
 1、Q:Can you produce the order according my design ?
A:Yes, sure , we have professional Research Development team and can develop goods according your design. And also modern equipment in my factory can help us to do .

 2.Can you send me samples?

As our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.
