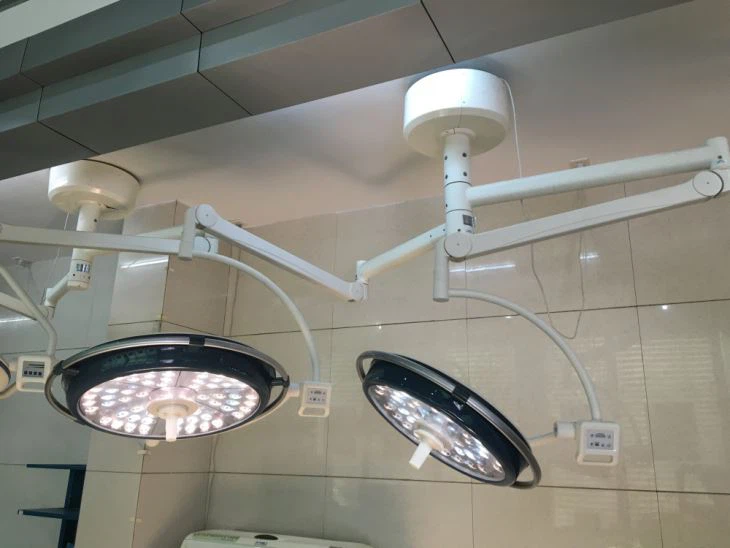

Surgical Ceiling Lights

Model: YDE700/500 A Name: Surgical Ceiling Lights Introduction Surgical Ceiling Lights combines Osram LED technology with French Gaggione lens: cold and warm light color, a life-span comes to 100.000 hours and an almost nonexistent heat development in the surgeon’s head area and in the...

Send Inquiry

Model: YDE700/500 A

Name: Surgical Ceiling  Lights

Introduction
 Surgical Ceiling Lights combines Osram LED technology with French Gaggione lens: cold and warm light color, a life-span comes to 100.000 hours and an almost nonexistent heat development in the surgeon’s head area and in the wound field. It has been the most stable and classic operating light with a perfect LED lighting solution complementing all surgical rooms.

YDE500/700 provides cold and warm light, as well as adjustment of the illuminated operating field for each surgical procedure. It contains 45+60 LEDs providing 190,000 Lux. All of the LED board is made of aluminum, which absorb more heat from the LED beads, prolong its service life.
 Technical design in nature can make sure to be suitable for somatology.
 Excellent Color mates can relieve fatigue.





 Features

 1.YUDA medical is the largest medical equipment manufacture in North China, YUDA  Medical series LED medical lighting with a dedicate view to bring expertise in surgical lighting, it comes from the demands for safety, efficiency and economy (operation costs).

 2.Fully hygienic:---Striking sleek lines without cutting edge. Rounded curves and smooth surfaces for quick and easy cleaning. Shock resistant coating.

 3.Minimal  laminar-flow interference.--------the fully sealed light head has been  aerodynamically promote to minimize turbulence of laminar-flow stenrilisation and purification systems.

 4.Illumination in depth -- You have the  possibility to increase the light intensity of the central segment of the OT­light. This enables an optimum illumination of the wound field according to its texture and the shadowing  effects.
 5.Superior color rendition --With color rendering indexes Ra above 96 and R 9 (red) above 95 the
 surgeon recognizes clearly the tiniest  nuances of color in tissue.
 6.. Long service life--40 times longer than halogen bulbs. Very low maintenance require. always operational when needed
 7..A “solid-state” light: no moving parts provide a low energy consumption.Reduced  energy consumption with 1W for each LEDs.
 8.100,000 hours of life from the LED beads.

 9.No more bulb to change- reduces waste by 95% over the light’s lifetime.

 10. Technical design in nature can make sure to be suitable for somatology.
 11. Excellent Color mates can relieve fatigue.
 12. Strict quality control environment can make sure high standard





Light

Diameter of light head

500mm (19.7 in)


Diameter of light head

700mm (27.6 in)


Luminance (Lux)@1m

120,000- 190,000 Lux


Light field diameter (d50)

120 to 350mm


Number of LEDs

45- 60

color

Color field temperature (K)

4300+-500K


Color render Index (Ra)

>95


Color render Index (R9)

>96

other

Temperature raise on Surgeon

<0.02℃


Standard installation height

2.7-3.3m


Radiated UV energy with wavelength less than 400nm (w/m2)

<0.002

power

Input rating

220V, 50Hz


LED power

1w×45, 1w×60


Average working life

>100,000 hours
