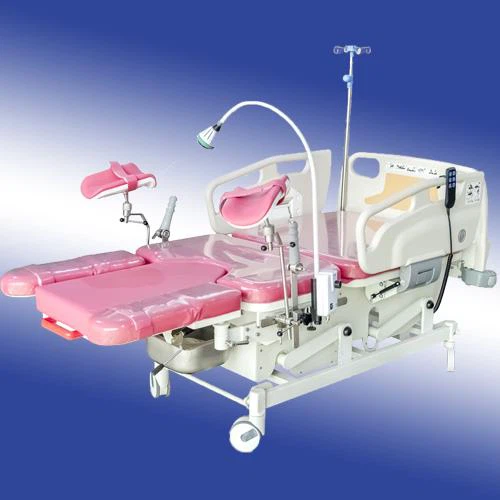

Operation Theatre Bed
Model: DFC-6001 Name: Operation Theatre bed Introduction With the conception of FCMC ( Family Centered Maternity Care) design, YUDA medical came out a ergonomic delivery clinic bed as gynecologist surgery table. With a 380kg ( 840lbs) heavy loaded gynecologist bed DFC-6001. It has got China...
Name: Operation Theatre bed
With the conception of FCMC ( Family Centered Maternity Care) design, YUDA medical came out a ergonomic delivery clinic bed as gynecologist surgery table. With a 380kg ( 840lbs) heavy loaded gynecologist bed DFC-6001. It has got China national top class tech and design have got 5 China patients. Imported Taiwan controlling system, easy use, less noise.
DFC-6001 not only can be used for all doctors as parturition, obstetrics delivery, urology examination and diagnosis, with emergency abdomen clinic assistant, and unique drive leg support, but it can get a elegant and comfortable ICU and Family maternity health care as beds.
Gynecology and Urology
With the addition of a variety of knee crutches, leg holders or leg plates at the mounting points as required, DFC-6001 permits ergonomically correct patient positioning and superb convenience in use. The seat plate extension is employed for urology interventions.
With a heavy loaded bears, we match up a strong motor in this bed, it can fully meet out the stability and flexibility in 15 years longer life span.
The height adjustment from 600 to 890 mm (24 to 37 in) permits ergonomic working positions, both seated and standing.
1. Taiwan made micro-motor has a noiseless and smooth stability. Central control castors.
2. concealed puling auxiliary table, with ABS material side rails and remote control.
3. stretchable stainless dirt basin in case of amniotic fluid water splash.
4. bed board lifting up and down, back board folder up, trendlenburg anti-trendlenburg are controlled by electric motor, arm support and leg support is disassemble, concealed dirt basin, moveable shank crush support.
5. Be equipped with a concealed movable auxiliary table-board, facilitating operations of gynecologists and midwives.
back board up folder
65°± 5 °
leg board folder disassemble
up 55°, down 5 °
AC 220V ± 22,50Hz
330kg ( 727 lbs)
