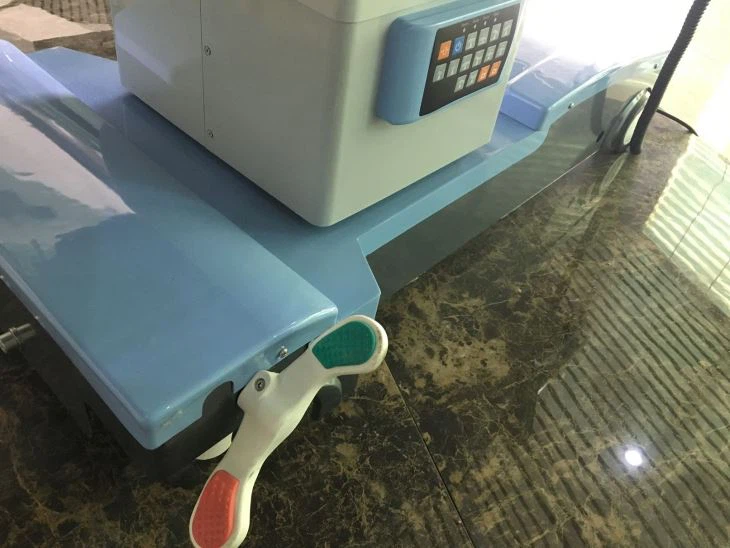

C-arm Compatible Operating Table

Model: DST-III Name: C-arm Compatible Operating Table Introduction DST-III is an electric and hydraulic combined OT table, it is a revolution for DST-700 series, but it is more economic. This new range makes excellent use of space and resources, streamlining workflows and raising productivity....

Send InquiryChat Now

Model: DST-III

Name: C-arm Compatible Operating Table
 Introduction
 DST-III is an electric and hydraulic combined OT table, it is a revolution for DST-700  series, but it is more economic. This new range makes excellent use of space and resources, streamlining workflows and raising productivity. It can bear 430kg( 947lbs) maximum capacity, with a head and foot board exchange, meet all the surgeries as a portable mobile operating table.





 Features

 1. Material:combined with hydraulic and electric, Germany Dunkeron motor with advanced Taiwan hydraulic transmission.

 2. ≥100mm castors can be electric locked.

 3. It has standard and reverse standard for head and foot exchange function.

 4. One reset function, with two independant electric controlling system.



Technical data

    Bed Panel Size

    (2015x 540) ± 10mm ( 79* 21.3in)

    Bed height from the ground(without pads)

    Min height: (660 ± 20) mm
    Max height: (1000 ± 20) mm
    (26-40.1in)

    Lifting route (electric)

    360 mm (14.1in)

    horizontal route(electric)

    370 mm(14.2in)

    Head and foot tilt (electric)

    Head down tilt: 25 ° ± 2 °

    Foot down tilt: 25 ° ± 2 °

    Lateral tilt (electric)

    Left: 22° ± 2 °

    Right: 22 ° ± 2 °

    Back plate fold(electric)

    Upward: 70 ° ± 2 °

    Downward: 32 ° ± 2 °

    Leg plate fold (manual)

    Upward: 28 ° ± 2 °

    Downward: 90 ° ± 2 °

    Head section fold (manual)

    Upward: 30 ° ± 2 °

    Downward: 90 ° ± 2 °

    Table panel X-ray absorption coefficient

    ≤ 0.44mmAL

    Power supply

    220V 50Hz 300VA

    Net weight/ capacity weight

    260kg / 430kg (947lbs)

    Main business products:
    OR surgical equipment, hospital furniture, X-ray imaging machine.
    Product Application:

    OR room surgical instrument equipment, ICU room, hospital medical equipment and furniture

    24 hours service team with your medical equipment provide.

    Call us: +86 13012921264

    NW: 360KG
    GW:430KG
    Wooden box packaging: 1.3CBM

    With our professional service delivery team, we have covered globally  more than 160 countries and areas sales work, with train comes to Moscow and  Europe countries, it usually can be 15 days finish the transportation. With sea  delivery, from 12- 40 days different to different areas.



    YUDA medical, since 1992. As the largest manufacture on medical equipment, We are dedicate to  your medical surgical equipment one set solution.
