Neurosurgery Procedure Table

Model: DST-700 Name: neurosurgery procedure table Introduction Amazing ergonomic design with long service life to 15 years----DST-700 series operating table. DST-700 It has a horizontal 350mm (13.8in) movements, supply accurate and convenient space for C-arm, can get X-ray imaging of full body...

Send InquiryChat Now

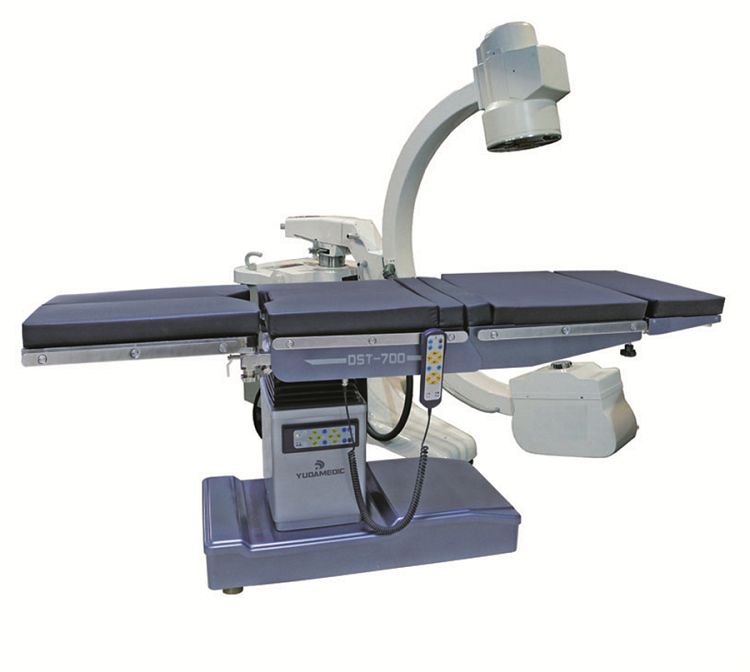

Model: DST-700

Name: neurosurgery procedure table
 Introduction
 Amazing ergonomic design with long service life to 15 years----DST-700 series operating table.
 DST-700 It has a horizontal 350mm (13.8in) movements, supply accurate and convenient space for C-arm, can get X-ray imaging of full body without moving the patient.
 DST-700 represent a high advanced technology, it has a a more using stability and utilized performance, with advanced material, it can be comes to 15 years life span.






 Features
 1.Extreme Load Capacity---Maximum capacity  430 kg / 950 lbs.
 2.Horizontal movement for X-ray  Compatibility
 Motorized longitudinal shift of up to 350 mm (13.8 in) and the use of carbon-fiber modules provide excellent C-arm access.
 3.Ergonomic Comfort
 The height adjustment from 660 to 1000 mm (25.9 to 39.3 in) permits ergonomic working positions, both seated and standing.





Technical data


Bed Panel Size (full carbon fiber material)

(2020 x 535) ± 10mm

Bed height from the ground (Without pads)

Min height: (695 ± 20) mm
Max height: (995 ± 20) mm

Lifting up and down (electric)

(300 ± 20) mm

Horizontal move route(electric)

(330 ± 20) mm

Head and foot tilt (electric)

Head tilt: 30° ± 2 °

Foot tilt: 30° ± 2 °

Lateral tilt (electric)

Left: 25° ± 2 °

Right: 25° ± 2 °

Back plate fold (electric)

Upward: 65 ° ± 2 °

Downward: 20 ° ± 2 °

Leg plate fold (manual)

Upward: 35 ° ± 5 °

Downward: 90 ° ± 5 °

Head section fold (manual)

Upward: 45 ° ± 5 °

Downward: 90 ° ± 5 °

One key reset function

Electric

battery

One week (80-100 times)

Table panel X-ray absorption coefficient

≤ 0.44mmAL

Bed lock

Electric

Power supply

AC: 220V 50Hz 300VA

DC: 24V (Panasonic lead-acid batteries)

Net weight /capacity weight

300kg (661lbs)  /430kg( 950lbs)
