Radiolucent Imaging Table

Radiolucent Imaging Table - A new line that takes full advantage of space and resources to optimize workflow and increase productivity.
YUDA offers extreme x-ray capabilities and perfect ergonomic limits. C-arm compatibility, combined with German 507 stainless steel gear and German Dukermotoren, and Panasonic match. Its imaging size is 1880mm * 450mm (74 * 17.7 inches).

Send InquiryChat Now

Model: JR-9000

Name: Radiolucent Imaging Table

Introduction

Radiolucent Imaging Table - A new line that takes full advantage of space and resources to optimize workflow and increase productivity.

YUDA offers extreme x-ray capabilities and perfect ergonomic limits. C-arm compatibility, combined with German 507 stainless steel gear and German Dukermotoren, and Panasonic match. Its imaging size is 1880mm * 450mm (74 * 17.7 inches)


Advantages and characteristics:

The use of precision imported micro-motors, motor gear meshing mechanical structure, instead of the traditional hydraulic transmission technology, no need to regularly add hydraulic oil, no hydraulic transmission is easy to leak oil. The product has superior rigidity; the running speed is uniform and stable, the position is accurate, the performance is reliable, and the durability is durable.

Large wheel diameter medical special casters, the whole bed is flexible and easy to clean on the ground.

Tested by the German TUV company according to the CE European standard, it has reached the EU quality standard, passed the EU CE certification, and the export-oriented products have reached the quality of imported products.



Features
1.Extreme Load Capacity
Maximum capacity 430 kg / 950 lbs patient weight.
2.360°degree Joy stick for X-ray Compatibility
Manually maximum head shift to 2000 mm (78.7 in) , foot shift 1040mm (41 in) and the use of carbon-fiber modules provide excellent C-arm access, shift comes to 250mm ( 9.8 in ).
3.Ergonomic Comfort
The height adjustment electric from 720 to 1100 mm (28.3 to 43.3 in) permits ergonomic working positions, both seated and standing.

4.Easy Click
The Easy Click mounting point allows the quick use of a broad range of socket-mounted modules .

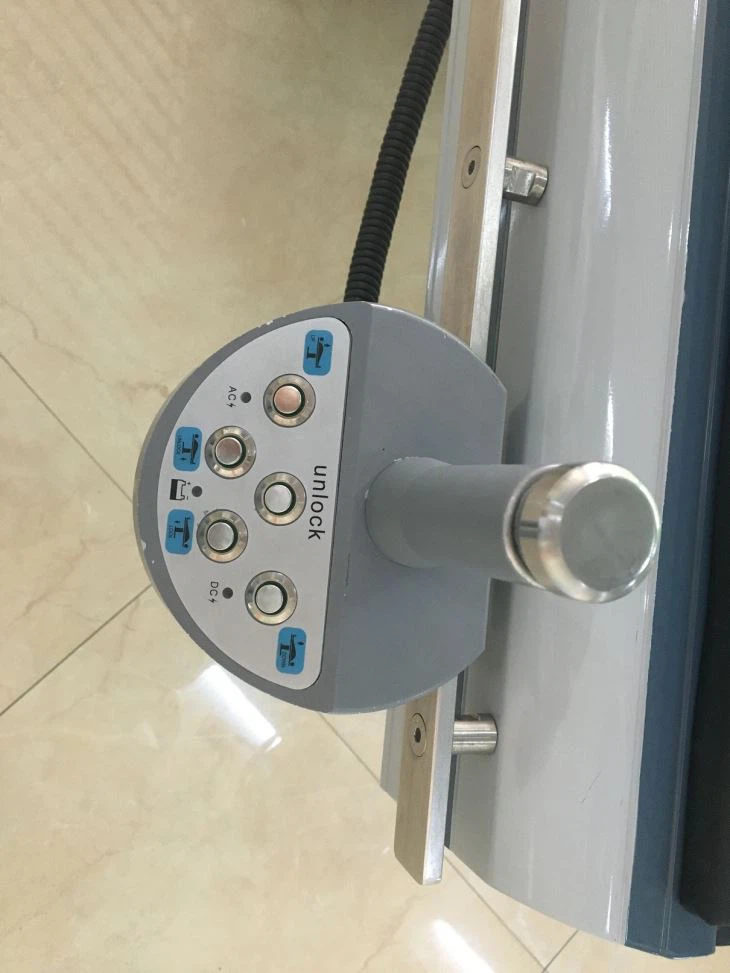

5.Control Units
The operating table can be controlled in different ways: corded hand control. The color display can be used to store individual operating table positions that can be activated at any time. Status reports, instructional notes and fault messages are shown on the display.



Technical data
Size-----2500*685mm (98.4*27 in )
X-ray imaging size----1880*480mm (74* 18.9 in )
Thickness---40mm
X-ray absorption coefficient---≤0.44mmAL
maximum capacity----430kg (948 lbs)
Movement---250+/-50mm non-grade variable speed
Electric movement---Lifting up and down /locking system
Average speed---8mm/s
height range to ground---750mm-1100mm
longtitude movement---300+/-20mm
maximum head protract---1680+/-20mm
maximum foot protract---1020+/-20mm
net weight/maximum capacity weight---390kg (860 lbs) / 430kg ( 948lbs)


Our quality:
The company has advanced two sets of spray lines, CNC center more than 270 sets, Japan OTC welding robot 8 , such as the world's most advanced machinery and equipment, strong, advanced equipment, modern management, high-quality Staff team, created a high-quality Yuda products.
