C-arm Compatible Medical Table Images

Model: DST-700 Name: C-arm compatible medical tables imaging Introduction Ideal Orthopedic X-ray imaging OT table----DST-700 This new range makes excellent use of space and resources, with streamlining workflows and raising productivity. It can best support for the patient and surgical team in...

Send Inquiry

Model: DST-700

Name: C-arm compatible medical tables imaging

 Introduction

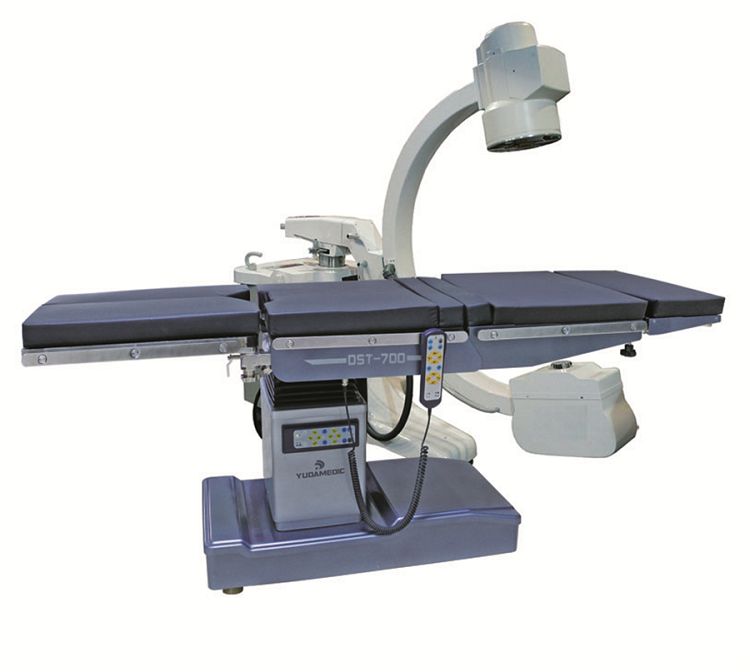

 Ideal Orthopedic X-ray imaging OT table----DST-700 This new range makes excellent use of space and resources, with streamlining workflows and raising productivity. It can best support for the patient and surgical team in OR room. YUDA offers unique X-ray capabilities and extreme articulations for perfect and ergonomic access.
 DST-700 can meet out C-arm compatibility with carbon fiber. With its versatile table tops, the DST-700 series can be use across all surgical disciplines




 Features
 1.Extreme Load Capacity:430 kg / 950 lbs patient weight.
 2 Motorized longitudinal shift of up to 350 mm (14 in), match up radiolucent X-ray imaging.
 3.Lifting from 660 to 1000 mm (25.9 to 39.3 in), ergonomically satisfied work station.
 4.Control Units: corded hand control, remote control, For emergency situations, there is an override panel on the table column.
 5.One reset-function as CPR . After surgery finished, just touch CPR function.
 6.Optional: temperature warm function.



Technical data

Bed Panel Size (full carbon fiber material)

(2020 x 535) ± 10mm

Bed height from the ground (Without pads)

Min height: (695 ± 20) mm
Max height: (995 ± 20) mm

Lifting up and down (electric)

(300 ± 20) mm

Horizontal move route(electric)

(330 ± 20) mm

Head and foot tilt (electric)

Head tilt: 30° ± 2 °

Foot tilt: 30° ± 2 °

Lateral tilt (electric)

Left: 25° ± 2 °

Right: 25° ± 2 °

Back plate fold (electric)

Upwardt: 65 ° ± 2 °

Downward: 20 ° ± 2 °

Leg plate fold (manual)

Upward: 35 ° ± 5 °

Downward: 90 ° ± 5 °

Head section fold (manual)

Upward: 45 ° ± 5 °

Downward: 90 ° ± 5 °

One key reset function

Electric

battery

One week (80-100 times)

Table panel X-ray absorption coefficient

≤ 0.44mmAL

Bed lock

Electric

Power supply

AC: 220V 50Hz 300VA

DC: 24V (Panasonic lead-acid batteries)

Net weight /capacity weight

300kg (661lbs)  /430kg( 950lbs)

About us:

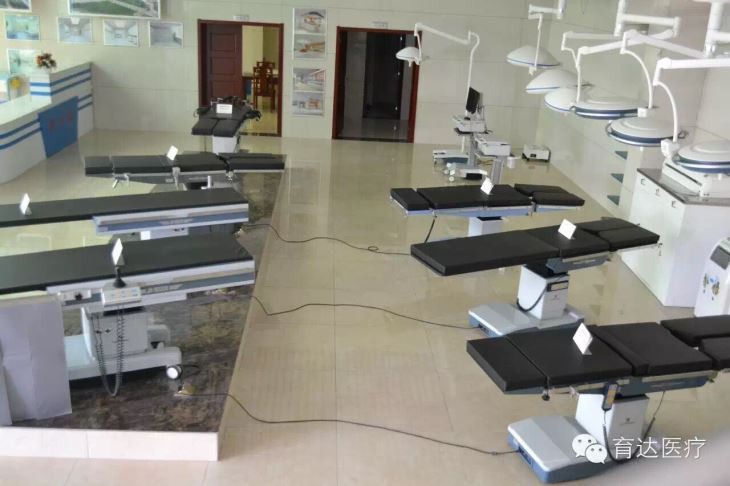

We have the largest medical or system manufacturing workshop in northern China. The goods we produce are very comprehensive. We can provide a complete design and offer for the new hospital. As a result, customers do not have to collect materials from many factories.
Our products cover the entire operating room, the entire ward care of all products, we promise that we will provide you with the most efficient all-round quality services to ensure that you solve all your worries.
