Hospital Bed 5 Function

Model: FG-5

Name: hospital bed 5 functions

Preface

FG-5 is a hospital bed 5 functions, it has five functional adjustment. They are typically head(or back), foot (or leg), height, trendelenburg (revere-trendelenburg) and right/ left tilt.Such hospital is a very stable smoothly electric controlled advanced medical bed produced by Shandong YUDA medical equipment Co., Ltd.

Standard Technical Data

FG-5 all electric function are controlled by 5 LINAK motors to achieve the whole smooth adjustment, a soft flectional multi-connected tube combined the leg board to the middle board, that's the glamour point.

1. overall lifting : 630-1030mm

2. back adjustment: 40°

3. leg adjustment: 15°

4. right and left tilt: 15°

5. trendelenburg 17°reverse-trendelenburg: 25°

6. weighting function

7. CPR function

seven soft tube are flectional, maximum 350kg (771 lbs) for safety bearing.

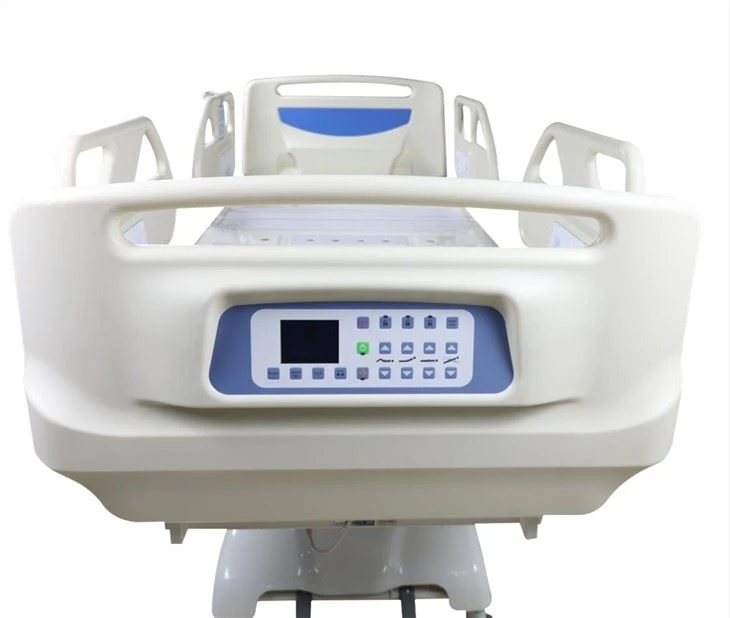

easy controlled keyswitch, streamlined design siderail with weighting function showed

inner side keyswith convenient for patients, even long time bedridden

Four sets foot swith board, it follows the reasonable concept release the liberty of nurse

smooth and steady electric height lifting and down by the design of new lifting system

central controlled braking system and four TENTE castors, noiseless and portable

The FG-5 put humans on the first, so YUDA medical can produced out such an amazing ergonomic scientific hospital bed 5 functions. For more multi-function hospital bed, please contact YUDA sales staff for more information.
