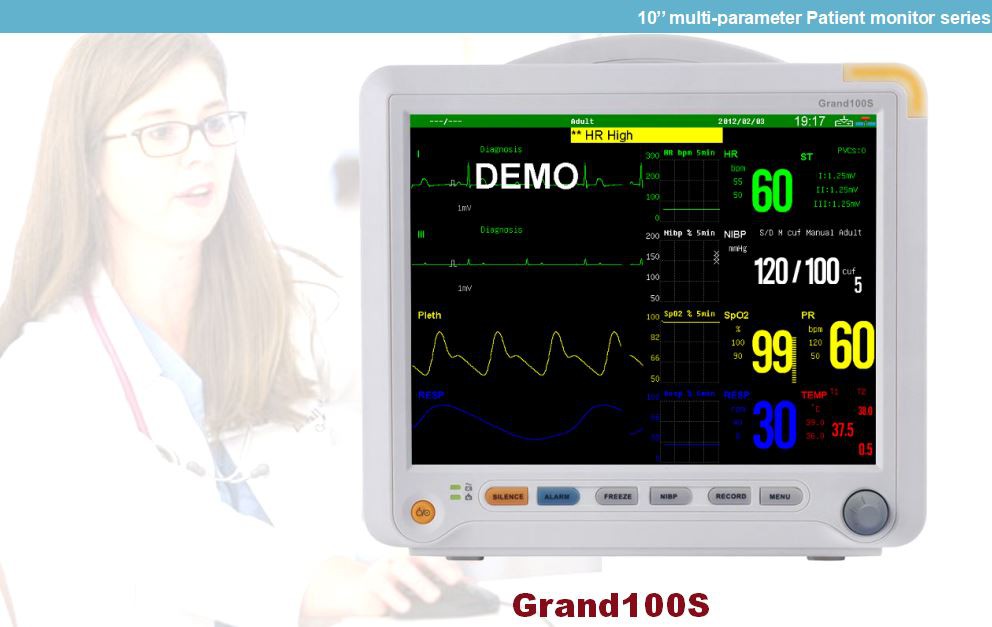

Medical Device Patient Monitor

Model： Grand100S

Name: medical device patient monitor

Features: 10 inch color high resolution TFT display; Can be arbitrarily set the alarm limit, automatic sound and light alarm; Anti-movement, anti-defibrillation, anti electrosurgical interference; Remote central monitoring network interface; Drug solubility calculation function, Arrhythmia analysis function; Built-in lithium battery, AC and DC, can provide long-term monitoring after power failure; Widely used in the Department of internal medicine, Dental practices (both pediatric and adult), oral surgery centers surgery, operation room,obstetrics and Gynecology, pediatrics, emergency center, ICU, CCU;

Performance Specifications

Display:  10.4”color TFT

Rolling and refreshing waveform display

Resolution: 800×600

Multi display selectable including:

Large-font display

Trend coexist display

OxyCRG dynamic view display.

Bed-to-bed view display

Trace: 7 waveforms(7 ECG, 1 SPO2 and 1 RESP)

Sweep speed: 6.25mm/s, 12.5mm/s,25mm/s,50mm/s

Indicator: Power/battery indicator light

QRS beep and alarm sound

Battery: Rechargeable lead acid cell, 12v/4AH

Max.24 hour for charging, 4 hours for continue working

Trend: Parameter graphic and tabular trends:

5s/piece,8 hours;1min/piece,168 hours (24hour×7days). 5min/piece,1000 hours.

Storage:  NIBP: 1000 groups

Alarm: 200 groups

Full disclosure waveforms: 3600S

Alarm:  User-adjustable High, Medium and Low limits 3-level Audible and visual alarm

Networking: Connected to central monitoring system. TCP/IP netting platform

Recorder: Build-in, thermal array

Plethysmogram waveform:2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type: Frozen waveform record

NIBP recall record

Trend table record

Alarm record

Fixed -time record

Portable Dental Oral implant Patient Monitor is adaptable to adult, pediatric and neonatal usage.It can be used in oral implant surgery. It can monitor and measure human body's vital signs in real time for patients, especially patients with cardiovascular and cerebrovascular diseases and diabetes, and monitor the changes of life signs in real time, and provide basis for oral implant.

YUDA medical has the strong team on Patient monitor research and development. Our patient monitor has powerful advantages, such as: Blood oxygen modulation function. The host can automatically adjust the blood oxygen tone rate according to the change of blood oxygen value, and judge the patients’ blood oxygen status from the doctor's voice. Monitoring is equipped with drug concentration analysis and titration standard. It is the nurse's good helper.

To get more information and brochure please feel free to contact us!
