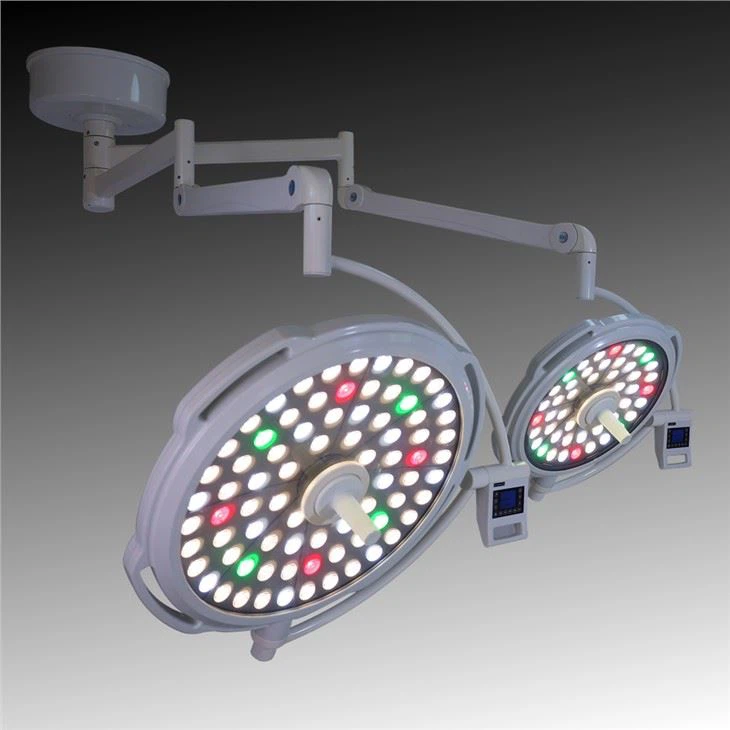

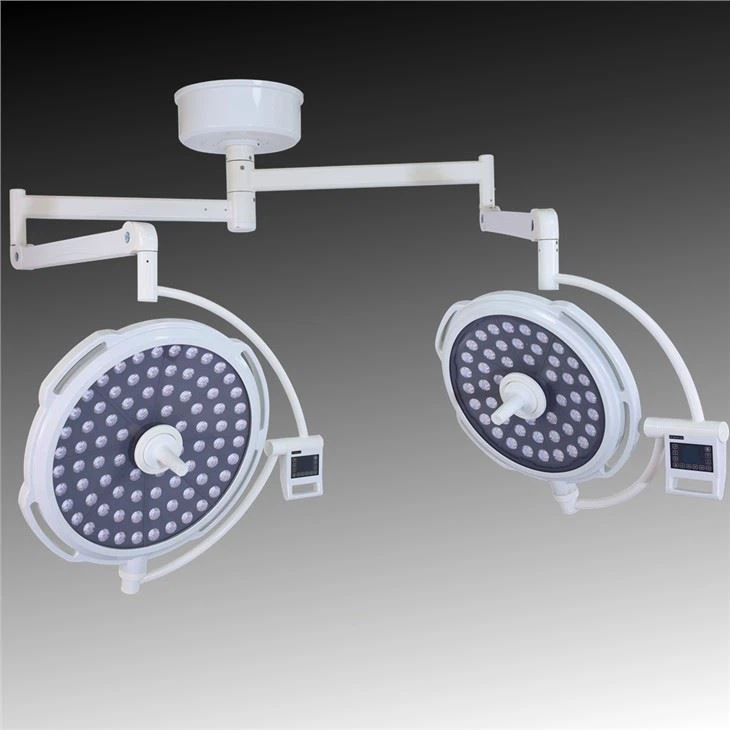

LED Surgical Lamp
Model: YDE700/500 B type
Name:LED Surgical Lamp
Features
1. Unique LED technology available,the YDE500/700 series of Dual Ceiling Mounted Medical Operating lamp have been designed to caters to all kinds of LED lighting
2. Standard: endoscopic mode, Optional: HD camera, SD camera and wall mounted system
3. Double traverse technique .Greater light output is 2 or 3 times higher than other lights, clear spot profile and uniform illumination to deep cavity procedures. Ergonomic layout of LED beads.
4.YDE500/700, contains 45+60 LEDs providing 190,000 Lux. 90% of LED is made of aluminum, these materials can be recycled.
5. Stable base control can maintain balance for complete lamp
6. Advanced threading technology can offer further life for lamp working
7.Sterilized handle for head can help doctor to move head flexibility
Standard endoscopic mode
super slim more smart and lighten lamp head
single head is optional

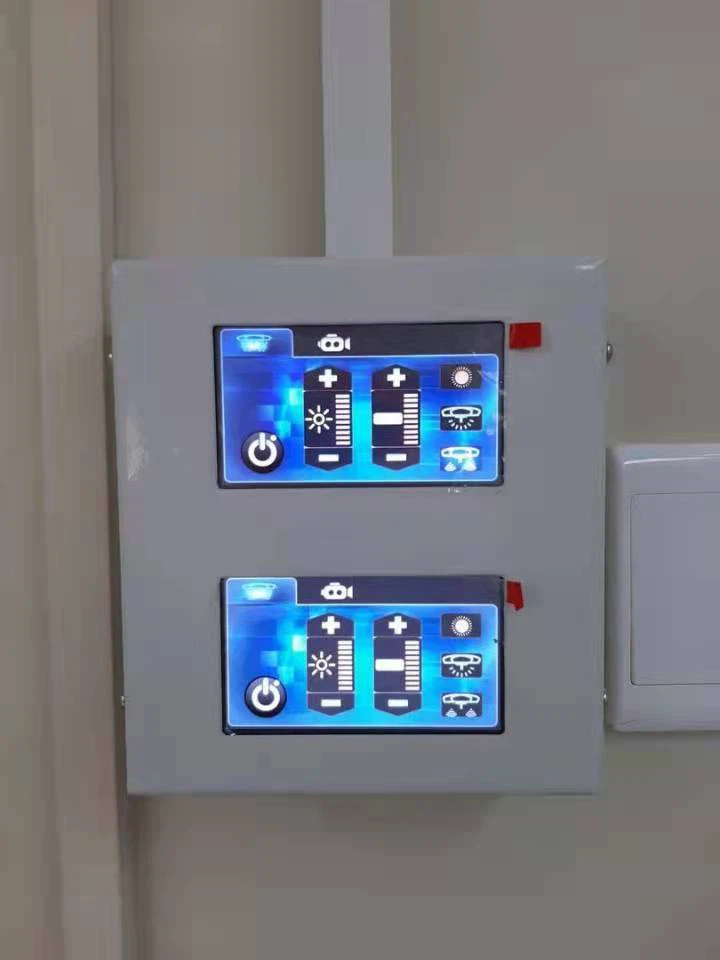

wall mounted system is optional
Introduction
1.YUDA medical as the largest medical equipment suppliers in North China, YUDA Medical series LED medical lighting with a dedicate view to bring expertise in surgical lighting, it comes from the demands for safety, efficiency and economy (operation costs).
2.Fully hygienic: Curve and smooth surface. Striking sleek lines without cutting edges. Shock resistant coating.
3. New cold LED light source:Lowest ultraviolet and infrared in light spectrum, temperature rising less than 2 ℃. Aviation aluminum material, greater heat dissipation.
4 Stable base control can maintain balance for complete lamp
5 Advanced threading technology can offer further life for lamp working
6 Standby handle for head can help doctor to move head flexibility
Light | Diameter of light head | 500mm |
Diameter of light head | 700mm | |
Luminance (Lux)@1m | 120,000- 190,000 Lux | |
Light field diameter (d50) | 120 to 350mm | |
Number of LEDs | 45- 60 | |
color | Color field temperature (K) | 4300+-500K |
Color render Index (Ra) | >97 | |
Color render Index (R9) | >96 | |
other | Temperature raise on Surgeon | <1℃ |
Standard installation height | 2.7-3.3m | |
Radiated UV energy with wavelength less than 400nm (w/m2) | <0.002 | |
power | Input rating | 220V, 50Hz |
LED power | 1w×45, 1w×60 | |
Average working life | >100,000 hours |
About our lamps
At first, we have exported lamps to Europe countries sincere 2005 .
We get great success for lamp market.
Unique design, strict control quality, high standard inspection .
Some successful orders from big hospital
Try to be the first to be my agent. After all, your success is our success.
Thanks to the help of our reliable customers, we have coorperated more than 10 years. At YUDA medical, we provide with our parteners a feeling of home.
