High Illumination Surgical Light
Brand: YUDA
Model: YDE700/500
Name: High Illumination Surgical Light
Certificate: CE UDI, FDA, ISO13485, FSC, IEC6061-2-49

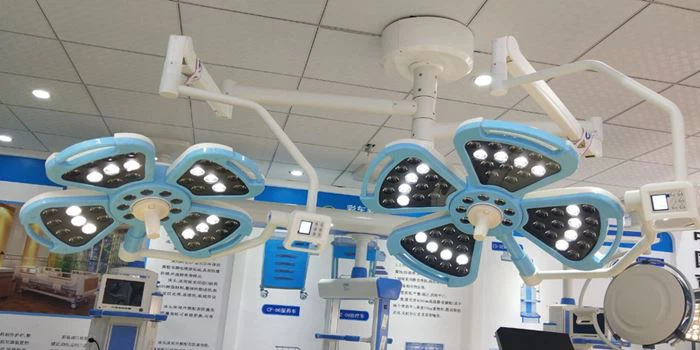

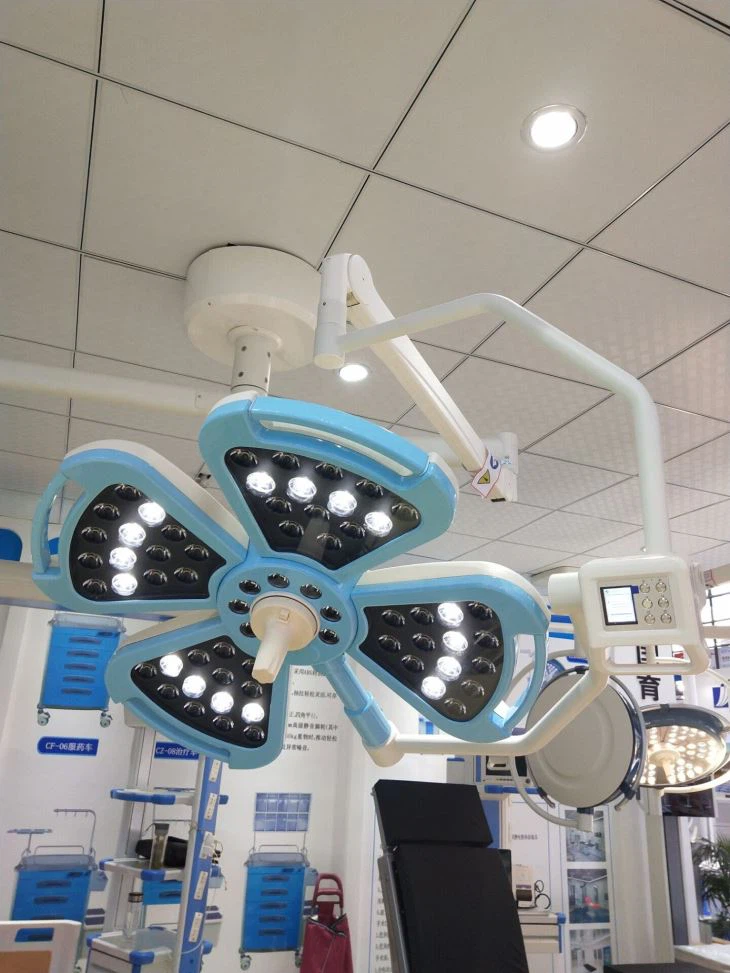

Medical lighting illumination-- providing both human and veterinary operating lamp, the very best humanized and economic high quality performance,procedure and exam light. YUDA YDE700/500 improved type LED operating lights ensures the clearest and brightest light for surgeons, without distractions from glare. Built on the proven German OSRMA surgical light that you've trusted for a decade, we've integrated innovative solutions that improve working conditions in your operating room.

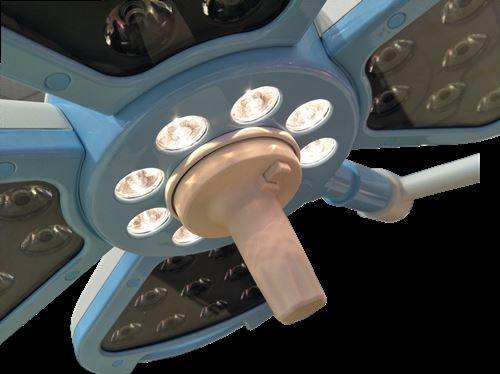

The YUDA Advanced LED Surgical Light incorporates proprietary double‑reflector optics, a patent‑protected innovation that optimises both light collection and beam homogenisation. This dual‑stage reflection ensures a gentle, yet intense light field – free from sharp boundaries or glare – that remains consistent even as the lamp head is repositioned.
YDE700/500 new improved series surgical lighting has adopts 48+80LEDS, with endocsopy type as standard, it is economic for
surgery room. This type have revolutionized the surgery environment, making lighting cooler, more color-accurate, more economical and greener.No matter what size your office, clinic or surgical center, Medical Illumination makes an outstanding quality, surprisingly affordable LED surgery light to fit your exact needs.
Pls contact YUDA medical for more details, 24 hours online: ( Whats app):+86 130 1292 1264
| Technical data | unit | 700 Lamp Head | 500 Lamp Head |
|---|---|---|---|
| Spot center Illumination (in color temperature 5000K) | Lux | 60,000-200,000 | 55,000-180,000 |
| color temperature | K | 3500-6700 | 3500-5500 |
| Ra | 98 | 97 | |
| 50% spot diameter d50 | mm | 160 | 150 |
| 10% spot diameter d10 | mm | 320 | 300 |
| illumination depth | mm | 5400 | 5200 |
| illumination adjusting range | % | 1-100 | 1-100 |
| ultraviolet irradiance (wavelength under 40nm) | W/m² | ≤0.02 | ≤0.02 |
| Focal distance adjusting mode (manual/electric optional) | manual/electric | manual/electric | |
| Beads power | W | 1W unit ×80 LEDs | 1W unit ×48 LEDs |
| Power supply | V/Hz | 110V/220V, 50HZ/60Hz | 110V/220V, 50HZ/60Hz |
| Input power | W | 100 | 100 |
| LED average life | Hours | ≥100,000 | ≥100,000 |
| Installation ceiling height | m | 2.65-3.2 (8.69'-10.5') | 2.65-3.2 (8.69'-10.5') |
| Type standard | camera monitor | camera monitor, endoscopy mod |
