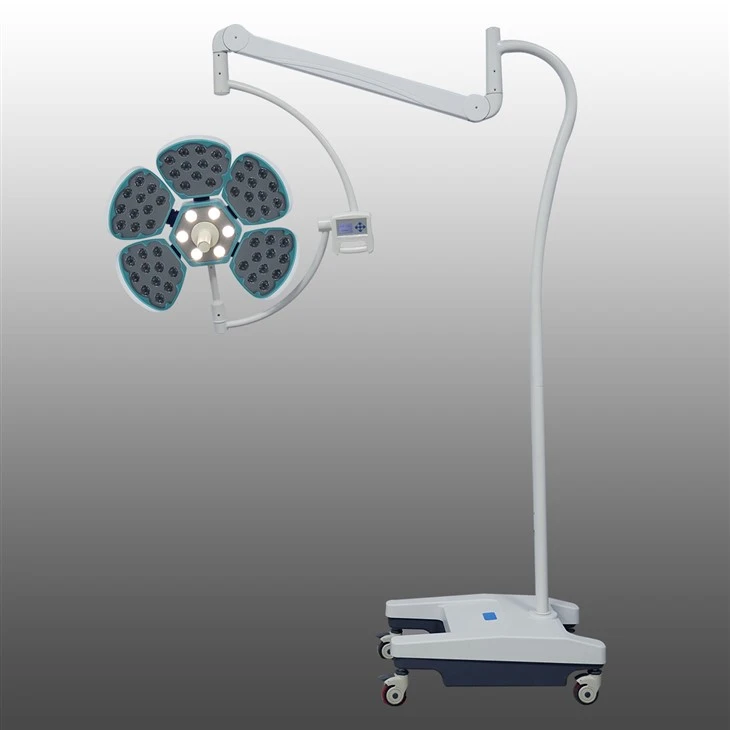

LED Mobile Surgical Lights

Model: YDE500D F type

Name: LED Mobile Surgical Lights

IEC60601-1,IEC60601-1-2,IEC60601-2-41

The YUDA Mobile LED Surgical Lamp is a self‑contained, wheel‑based lighting system designed for operating rooms, procedure rooms, and emergency settings where fixed ceiling mounts are unavailable or impractical. It delivers surgical‑grade, shadow‑minimising illumination with exceptional colour accuracy, while its integrated battery and charger ensure uninterrupted operation during mains power fluctuations or outages.

KeyFeatures:

• Three the power of illumination than economic market type, which its illumination is from 55,000 to 160,000Lux as a single head mount, with German LED lights.

• Twice the arm reach, with a range of 146 inches and 360° rotation, the vertical range is 125CM.

• Lasts 10 times longer than traditional LED operating lamps.≥10,000 hours lifespan.

• Adjustable with one hand, using the center handle.

• Uses 70% less energy.

•



  product key technologies



  01.

  Optical Performance – High Fidelity and Adjustable Output

  Colour Rendering Index (CRI): Equipped with advanced LED chips, the lamp achieves a CRI > 95 (on a 0–100 scale), closely replicating natural daylight. This high fidelity enables clinicians to accurately distinguish tissue types, vascular structures, and pathological boundaries with minimal colour distortion.

  Colour Temperature: The light output is adjustable within a clinically optimal range (typically 4000–5000 K), allowing users to select a warm, neutral, or cool white tone to suit different procedures and surgeon preferences.

  Intensity and Spot Size: A built‑in electronic focusing system allows continuous adjustment of both illuminance (brightness) and light patch diameter – from a narrow concentrated beam for deep cavities to a wider field for surface procedures.

  02.

  Mobility and Ergonomic Design

  Sturdy Base with Casters: The lamp is mounted on a heavy‑duty, five‑leg or four‑leg base equipped with smooth‑rolling, lockable casters. This design ensures stable positioning during surgery, yet allows effortless transfer between operating rooms or storage areas.

  Balanced Spring Arm: A precision‑balanced articulated arm provides vertical and horizontal reach, enabling the lamp head to be positioned precisely over the surgical site with minimal effort. The arm maintains its set position without drift, even during prolonged procedures.



  Intuitive Control Panel: A membrane keypad or optional LCD touchscreen is mounted on the lamp head or arm, offering easy access to:

  On/Off switch

  Stepless brightness dimming
  – Spot size adjustment (zoom)
  – Colour temperature selection (preset or continuous)

  Memory Function: The system retains the last used settings, reducing setup time for recurring procedures.

  Sterilisable Handles: The lamp head includes detachable, autoclavable handles (resistant to 134°C / 205.8 kPa) for aseptic repositioning by the surgical team.

  Specifications:

• Weight: 93 lb (42.18 kg).

• Reach: 157" (400 cm).

• Light Source: Light Emitting Diodes (LED).

• Light Intensity: 140,000 Lux at 1 meter.

• Light Color Temperature: 3,000 -5,600Kelvin.

• Number of LED Modules: 80(700 head) / 48 (500 head)

• LED Lifespan: 100,000 hours.

• Power: 70 watts.

• Color Rendering Index: 96.

• Lamphead Diameter: 27.55"(700mm) + 19.68''(500mm).

• Light Field Diameter: 13" - 15" (33 cm - 38 cm).

• Depth of Illumination: 54" (137 cm).

• Minimum Ceiling Height: 8 ft. (244 cm).

• Maximum Ceiling Height: 12 ft. (366 cm).

•
