Multi-Reflector LED Surgical Lamp
video
Multi-Reflector LED Surgical Lamp

Multi-Reflector LED Surgical Lamp

YUDA LED surgical light focuses on next-generation lighting systems, featuring a patented double reflector technology. This innovation provide gentle and consistent light source.
Send Inquiry
Product Details ofMulti-Reflector LED Surgical Lamp

Model: YDE700/500 E Type

Name: Multi-Reflector LED Surgical Lamp

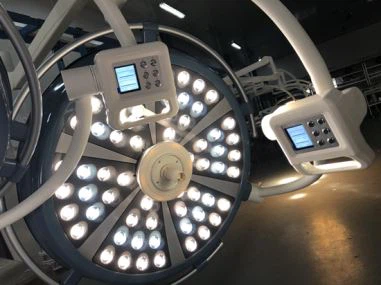

The YUDA Advanced LED Surgical Light is a ceiling‑mounted or mobile‑ready illumination system engineered for operating theatres and procedural suites. It employs a sophisticated multi‑reflector optical train – featuring hundreds of precision‑faceted micro‑mirrors – to collect, collimate, and direct LED emissions into a homogeneous, shadow‑free light field. This design delivers exceptional brightness, deep‑cavity penetration, and true‑colour tissue rendering, while maintaining a cool, comfortable environment for both patients and surgical teams.



product key technologies
adjustable surgical light
01.Patented YUDA Technologies – Double Reflector & YUDA Mode

The YUDA Advanced LED Surgical Light incorporates proprietary double‑reflector optics, a patent‑protected innovation that optimises both light collection and beam homogenisation. This dual‑stage reflection ensures a gentle, yet intense light field – free from sharp boundaries or glare – that remains consistent even as the lamp head is repositioned.

Complementing this hardware is the exclusively developed YUDA Mode – an intelligent software‑driven lighting algorithm that dynamically adjusts beam intensity, colour temperature, and spot size in real time based on surgical phase (e.g., incision, dissection, closure). YUDA Mode delivers an unprecedented visual experience: enhanced contrast in deep cavities, reduced eye fatigue during lengthy operations, and seamless adaptation to varying tissue reflectivity – all at the touch of a button.

02.Clinical Performance Metrics

Luminous Output: Delivers up to 160,000 lux at a 1‑metre working distance – surpassing the requirements for even the most demanding microsurgical procedures.

Depth Penetration: The tightly collimated beam maintains high illuminance at extended focal lengths, effectively lighting deep cavities without auxiliary in‑cavity fibres.

Colour Fidelity: With a Colour Rendering Index (CRI) ≥ 97 and a selectable colour temperature range (adjustable around 4300–5000 K), the light renders tissue colours with exceptional accuracy – enabling confident differentiation of vascular, neural, and pathological structures.

high CRI surgical light

Features:

    • No risk of tipping.

    • Adjustable with one-hand control.

    • Durable and economical.

    • Available in both mobile floor standing and wall mount and ceiling mounted type.

    • Manufactured in Shandong YUDA medical, China

    • CE, ISO9001, 13485, FDA, NQA

    • Warranty: 2 years

    • Life span: more than 10,000 hours

    • Illumination: 50,000-180,000 lux

    • Color temperature: 3000-6000K adjustable

    • Spot Size: 120mm-360mm

      Illumination depth: 1200mm-5200mm

      LED beads: 42+84
