Surgical Hand Table
Model: DST-500A
Name: Surgical Hand Table
Introduction

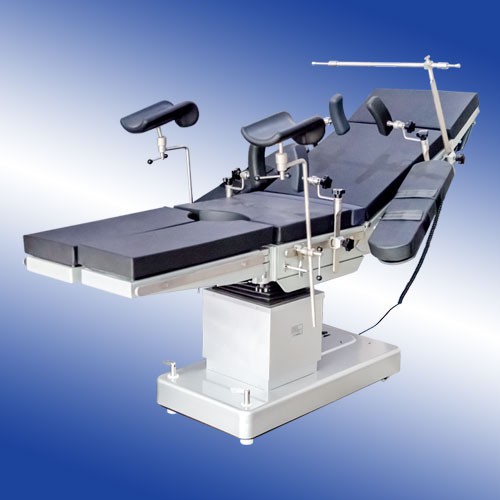

Modern OR room amazing Operating table--- DST-500A. Application of modern technology, combined with the idea of ergonomic design, meet the requirements of operation in the process of video observation and diagnosis,comprehensive strength, for each part of the human body surgery in modern OR room.
DST-500A --It bears patient weight up to 280kg ( 617 lbs), with a super lower position comes to 500mm(19.69in), permits ergonomic working positions, both seated and standing. The DST-500 A series by YUDA offers unparalleled safety and stability.
Features
1. The entire desktop can be moved longitudinally, C arm X-ray machine to achieve a broader perspective
2. Stable performance. Power system uses a safe voltage motor, low noise, cost-effective.
3. Bed size ergonomic, easy to adjust cervical, lumbar, spine and other locations.
4 for a variety of surgical procedures
5 equipped with micro-controller, you can touch the various movements of the various sections.
6. Leg can be folded, removable and easy to adjust, facilitate urological surgery
There are four castors on the bottom of the operating table. Bed operation is easy to move, pedal braking function can also make the bed stable.
Technical data
Bed Panel Size | 2040 x 520mm |
Bed height from the ground (without pads) | Min height: 850 mm |
Lifting route (electric) | 200 ± 20mm |
Horizontal route (electric) | 300 ± 20mm |
head and foot tilt (electric) | head tilt: 20 °± 2 ° |
foot tilt: 20 °± 2 ° | |
Lateral tilt (electric) | Left: 19° ± 2 ° |
Right: 19° ± 2 ° | |
leg plate fold (manual) | downward: 90 ° |
Horizontal extend: 90 ° | |
back plate fold (electric) | upward: 65° |
Downward: 30° | |
Head section fold (manual) | Upward: 20°± 2 ° |
Downward: 90°± 2 ° | |
External kidney bridge lifting route(manual) | 120 ± 10mm |
Net weight/ capacity weight | 170kg/ 300kg |
Table locking | manual |
Power supply | 220V 50Hz 750VA |
About our company:
We have the largest medical or system manufacturing workshop in northern China. The goods we produce are very comprehensive. We can provide a complete design and offer for the new hospital. As a result, customers do not have to collect materials from many factories.
