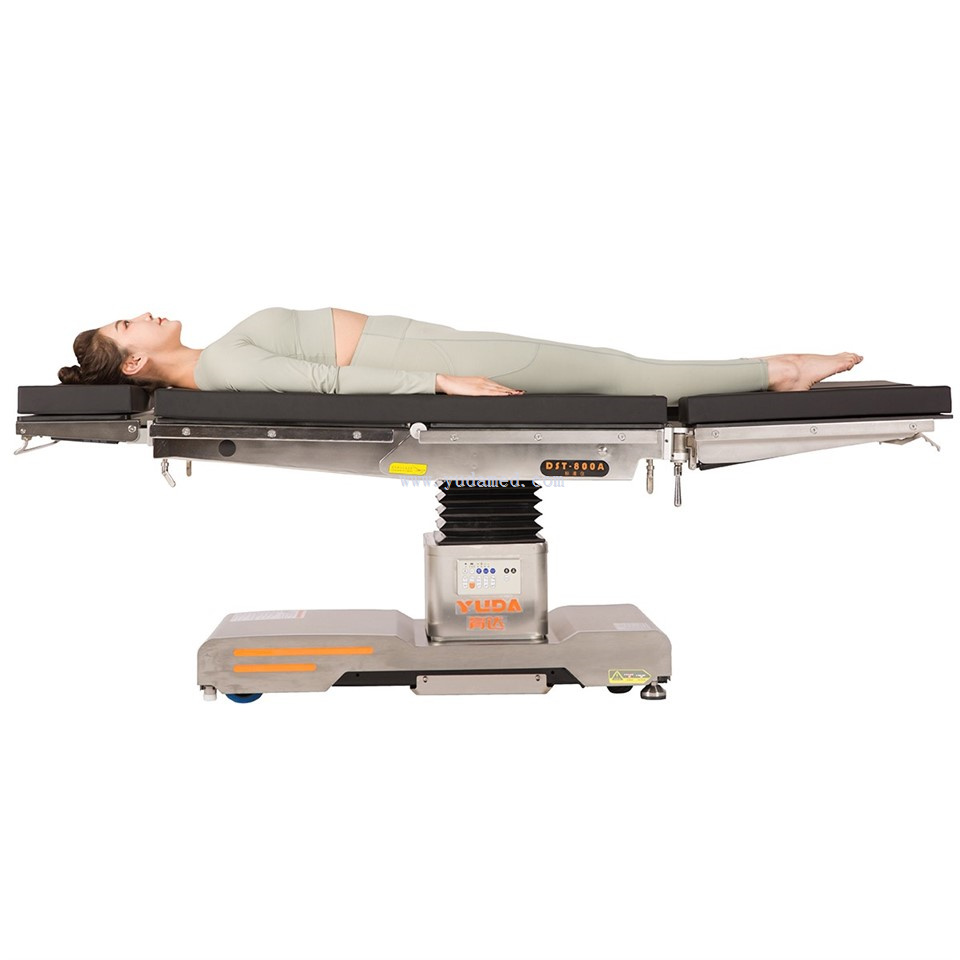

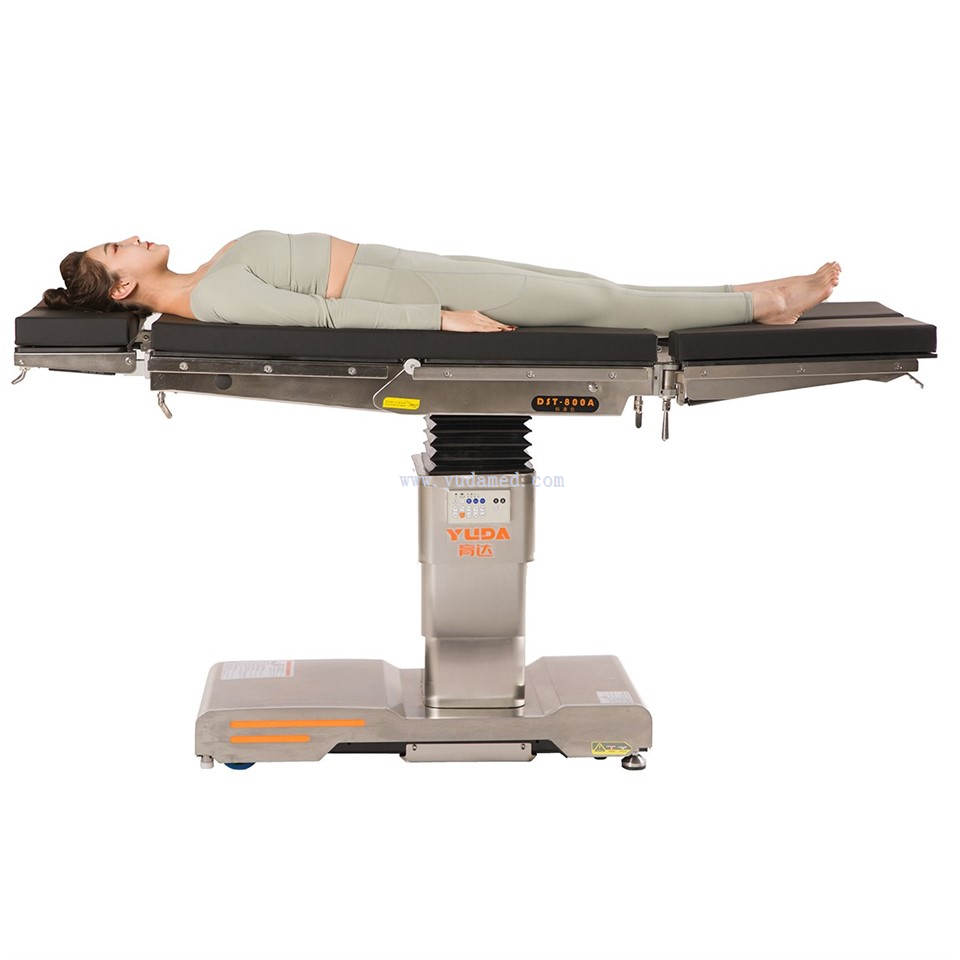

Model: DST-800A

Name: Electric Hydraulic Operating Table

YUDA medical DST-800A electric hydraulic operating table is new designed in 2022 year, and get improved in 2023. It features an heavy load capacity up to 310kg-340kg (685-750lbs), static load capacity up to 380kg((838lbs), getting new designed ultra-thin 304 stainless steel C-arm easy adaptive base, and the new improved electric hydraulic system, it is a versatile operating table and strongly compatible with various accessories for all kinds of surgical needs.

YUDA surgery table quality — 2.2 thikness stainless steel connection, superb siderails.The maximum allowable torque on the rail is ≥70 Nm along the longitudinal axis and 100 Nm along the transverse axis. Mechanical leg board adjust range +30°,-90°, head board adjust range: +45°,-90°

operating table optional accessories — Variety accessories you can choose

Revolutionize Surgical Precision: The Next-Gen Operating Table

Meet the operating table engineered to exceed the demands of modern surgery. Designed for unparalleled flexibility, superior patient positioning, and seamless integration with advanced imaging, it's not just a table-it's your partner in the OR.

Unmatched Range of Motion

Effortless Height Adjustment: Achieve optimal ergonomics with a wide height range (640mm - 1040mm) over a full 340mm travel.

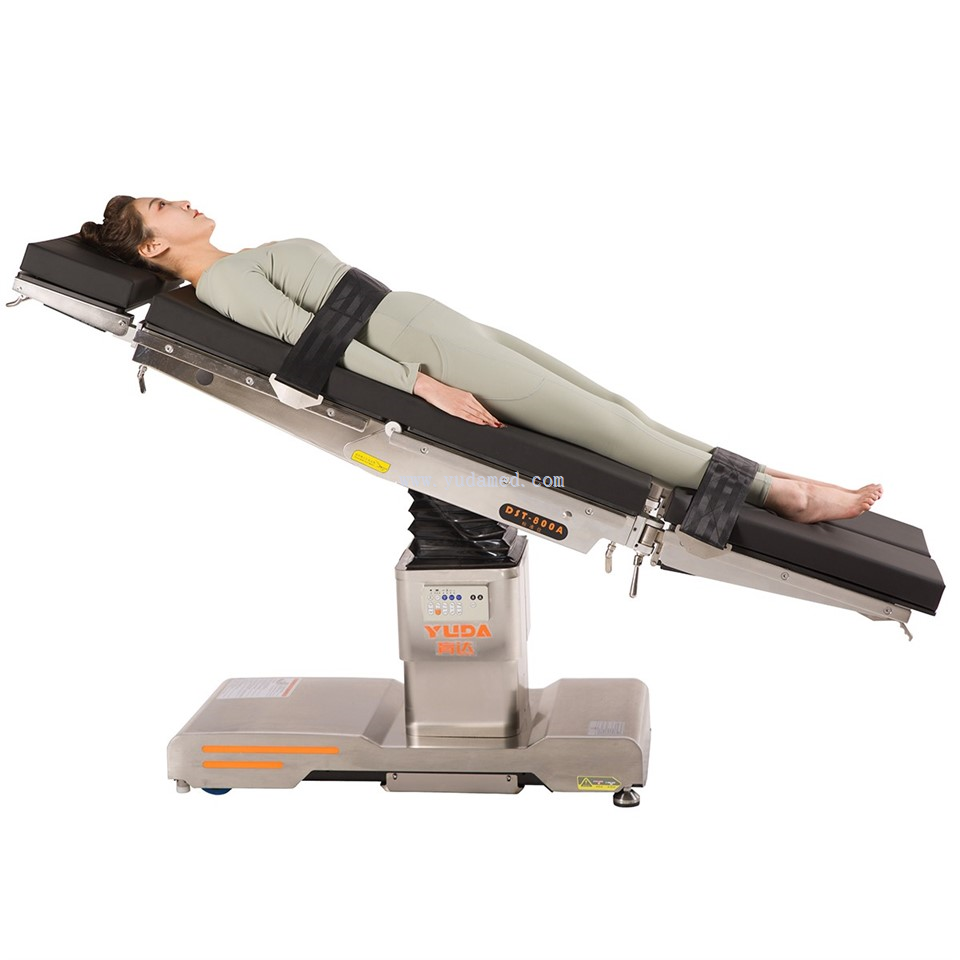

Maximum Patient Tilt: Facilitate complex procedures with comprehensive Trendelenburg/anti-Trendelenburg positioning (±30˚) and significant lateral tilt (±18˚).

Advanced Sectional Flexibility for Superior Access

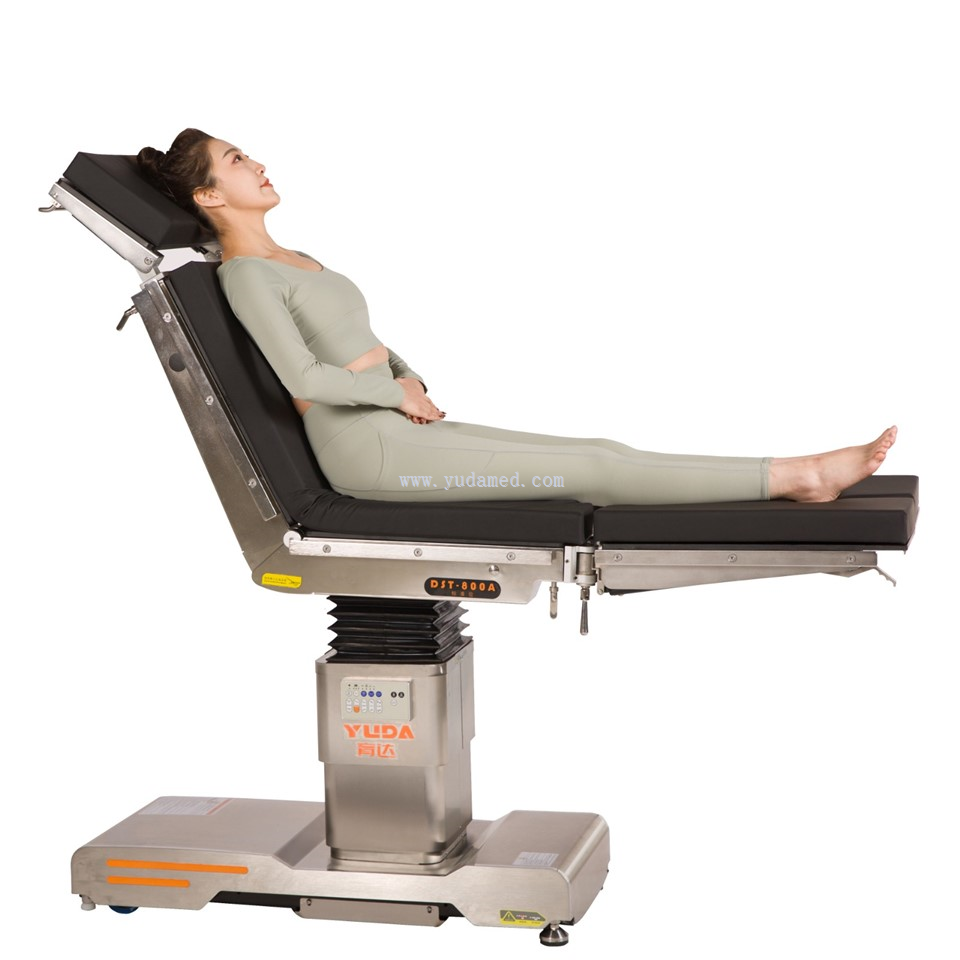

Highly Articulating Back Section: Tilts +90˚ up and -40˚ down for versatile upper body positioning.

Dynamically Tilting Main & Foot Sections: The main section moves +40˚/-90˚, while the foot section offers an exceptional +15˚/-90˚ range.

180˚ Leg Support Spread: Achieve perfect positioning for gynecological and urological procedures.

Designed for Imaging & Specialized Surgery

Longitudinal Slide for C-Arms: A full 340mm panel shift ensures seamless compatibility with C-shaped X-ray systems.

Integrated Kidney Bridge: A built-in kidney roller lifts up to 110mm for enhanced surgical access.

Specialized Attachments: Includes dedicated sections for back, shoulder, and chest surgeries, plus a special gastric surgery section for ultimate procedural support.

Intuitive Control & Complete Accessory Suite

One-Touch Convenience: The "return to original position" button on the control panel resets your setup instantly.

Ready for Anything: Comes complete with a full set of removable accessories for general surgery and gynecology/urology.

Elevate Your Operating Room. Experience the difference of intelligent design and robust functionality.
