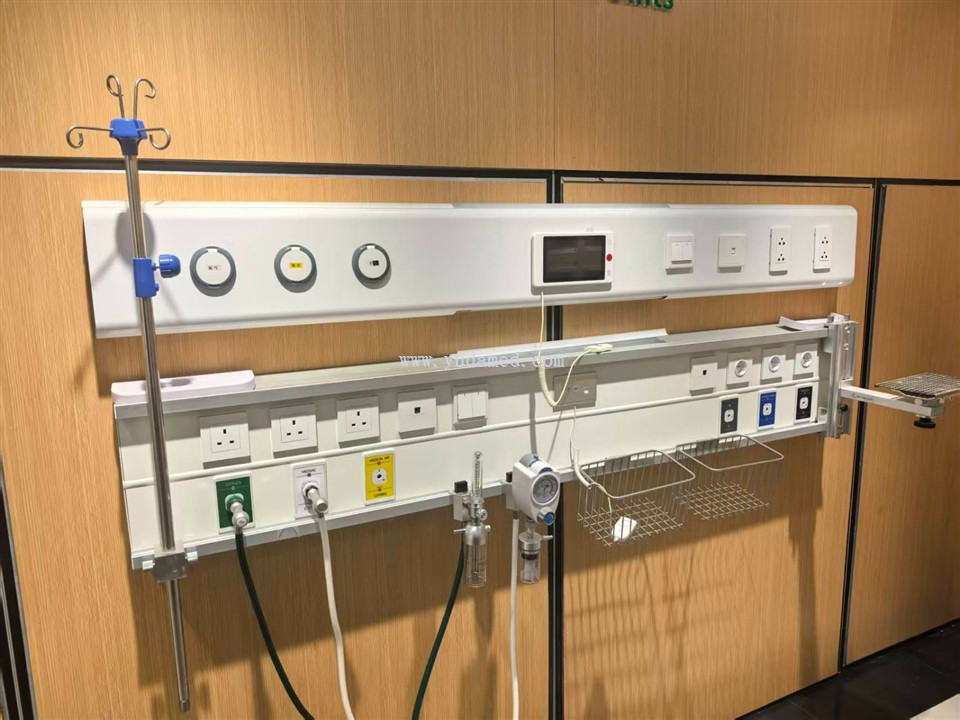

Model: DSBD36

Name: Medical Bedhead Console with Nurse Call

Support Customization for Hospital Ward

FAQ

1. What is a medical bedhead console?

A medical bedhead console is a hospital equipment unit installed at or behind a patient's bed. It can integrate medical gas outlets, electrical sockets, lighting, nurse call systems, data connections, and other services required for patient care.

2. What is the difference between a bedhead unit and a bedhead console?

The terms bedhead unit, bedhead console, bedhead panel, and bed headwall can describe similar bedside medical service systems. The exact terminology varies by manufacturer, design, and market.

Product Spotlight of YUDA made this DSBD36 Medical Bedhead Console with Nurse Call System

• Gas circuits, strong electricity, and weak electricity are installed separately to achieve gas and electricity separation; compliant with the IEC medical electrical safety requirements
• The aluminum profile structure and thickness comply with IEC aluminum alloy architectural profiles Part 1: Base material; the surface spray treatment complies with GB/T1727-1992 "General Preparation Method for Paint Films"
• The split-type combination equipment band can be combined with various structures such as double circles, circle oblique, and double oblique; it can be transformed in function and position according to the needs of the ward
• The equipment band material has a wall thickness of not less than 2.2mm and a width of not less than 281mm, meeting the installation requirements for large-sized electrical components
• Internal track slots facilitate the surface and concealed installation of electrical components

General requirements

Equipped with: one oxygen outlet, 9 electrical sockets ~220V.

Material: PVC, lead-free, non-flammable material (30 sec).

Resistant to the effects of aggressive and chemical environments.

The mounting of the housing withstands a weight of up to 145 kg.

Temperature resistance in operation from –10°C to +60°C.

Staff call button.

Warranty period - one year.

Service life - ten years.

General characteristics

Dimensions not more than - 1100 × 230 × 90 (mm).

Impact resistance: 1 J.

2 LED lamps with switches or remote switches.

Transmission of the signal from the call button via RS-485 interface.

Availability: (optional for your modify)

Oxygen outlet – 1 pc.

Electrical outlets – 9 pcs.

Staff call button – available.

At least 2 LED lamps.
