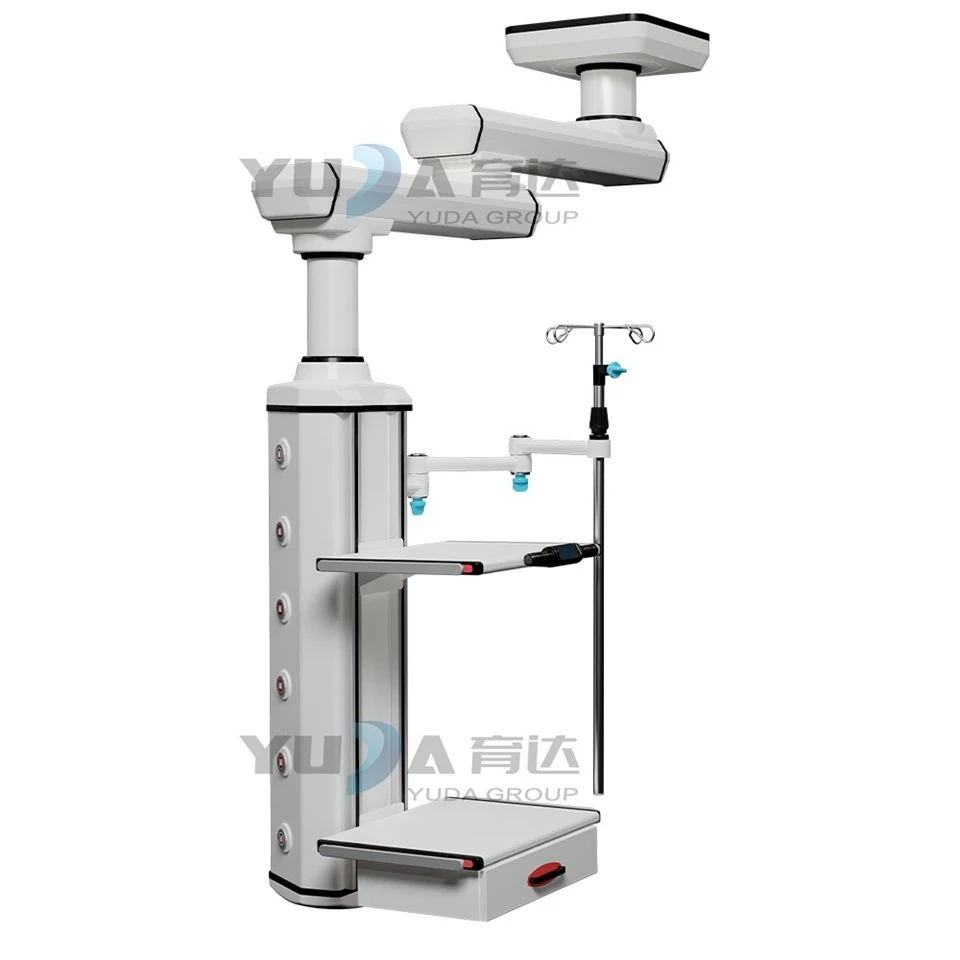

Double Arm Anesthesia Medical Pendant

Model: YDE6200E-2

Name: Double Arm Anesthesia Medical Pendant

YUDA medical advanced series new made anesthesia pendant series could adopts advanced  pneumatic braking system, with a 340 ° rotation on each arm. Buyers could customize your key demands on our OME/ODM supported anesthesia surgical pendant series.

1.The main body of the pendant shall be made of 6063‑T5 or higher‑grade high‑strength aluminum alloy profile, and shall have passed the inspection of the National Aluminum Profile Quality Supervision and Inspection Center.

2. The surface coating powder effectively inhibits bacterial colonization, reducing the risk of surgical infection. The powder has passed third‑party environmental certification and exhibits surface‑level antibacterial properties.

3. The power cords and gas supply lines of all equipment mounted on the pendant shall not move relative to the pendant body. All power lines and gas tubing shall remain concealed within the pendant body, ensuring that no disconnection occurs due to position changes during movement.

4. All pendants are equipped with damping brakes, allowing operators to easily control rotation of the pendant.

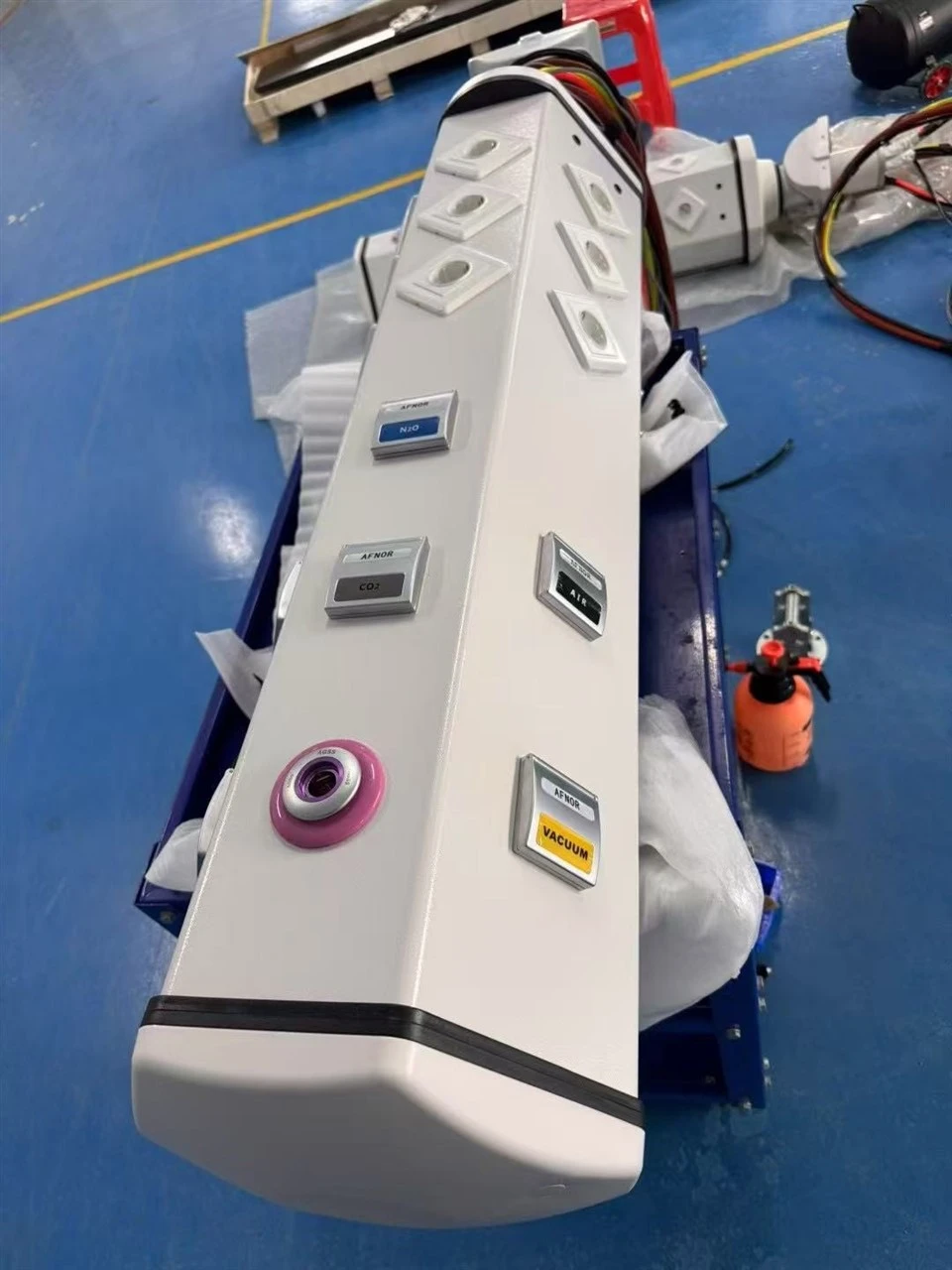

5. The pendant column housing features a fully enclosed, six‑sided integrated design without any splicing. It is formed by a large‑scale integral extrusion mold, with separate routing for gas and electricity. It can be configured with bidirectional trays to accommodate future hospital expansions.

6. A three‑rail track design facilitates clinical use and allows for easy installation of additional functional modules in the future.

• This 6200E series anesthesia pendant arm system and its pivot shaft are designed for stability, equipped with damping brakes to prevent drift. The arm rotation angle is ≥340°.
• The high‑strength aluminum alloy cantilever has a single‑side upper and lower wall thickness of ≥10 mm, with a double‑layer reinforced structure on the side edges.

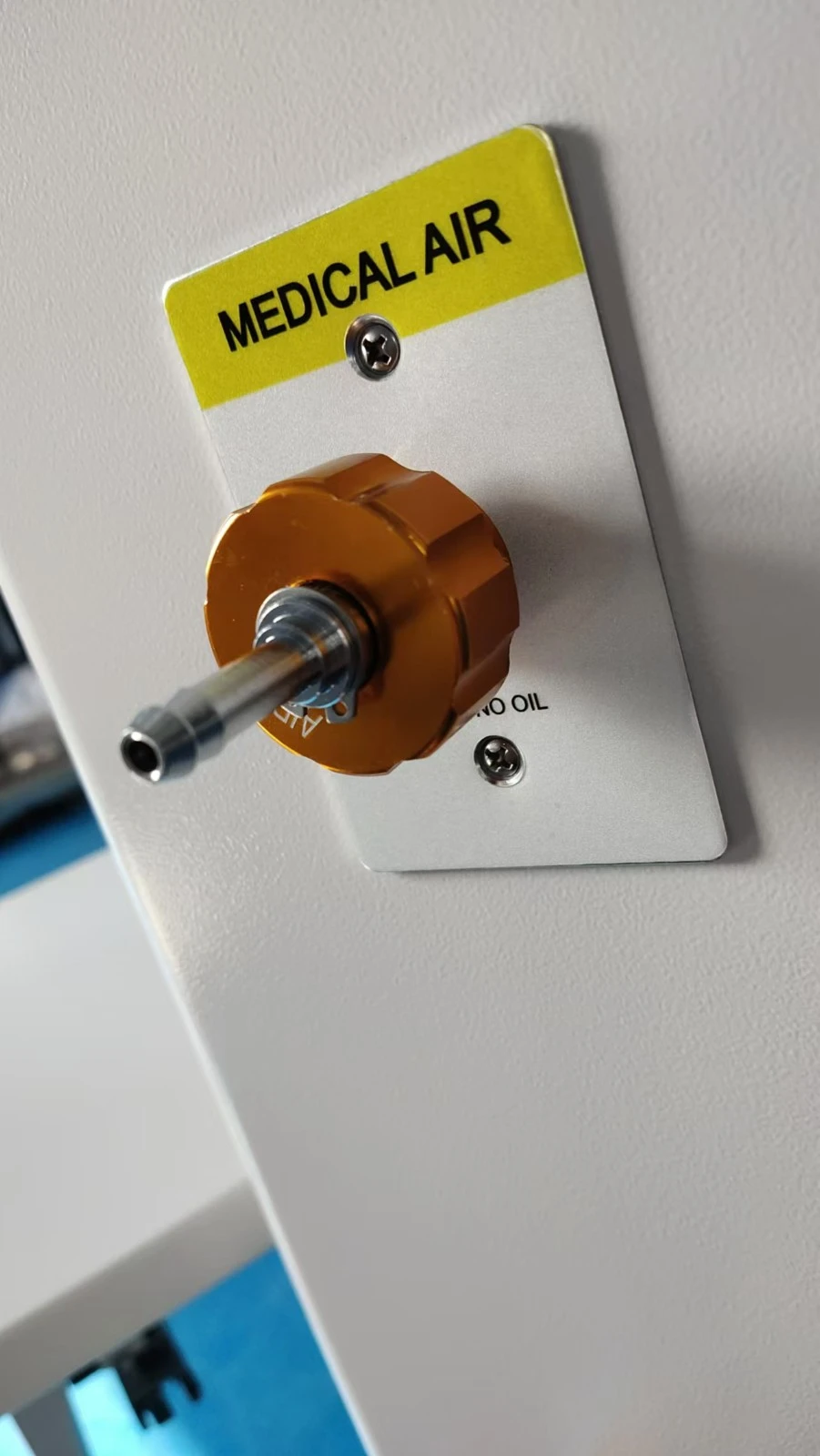

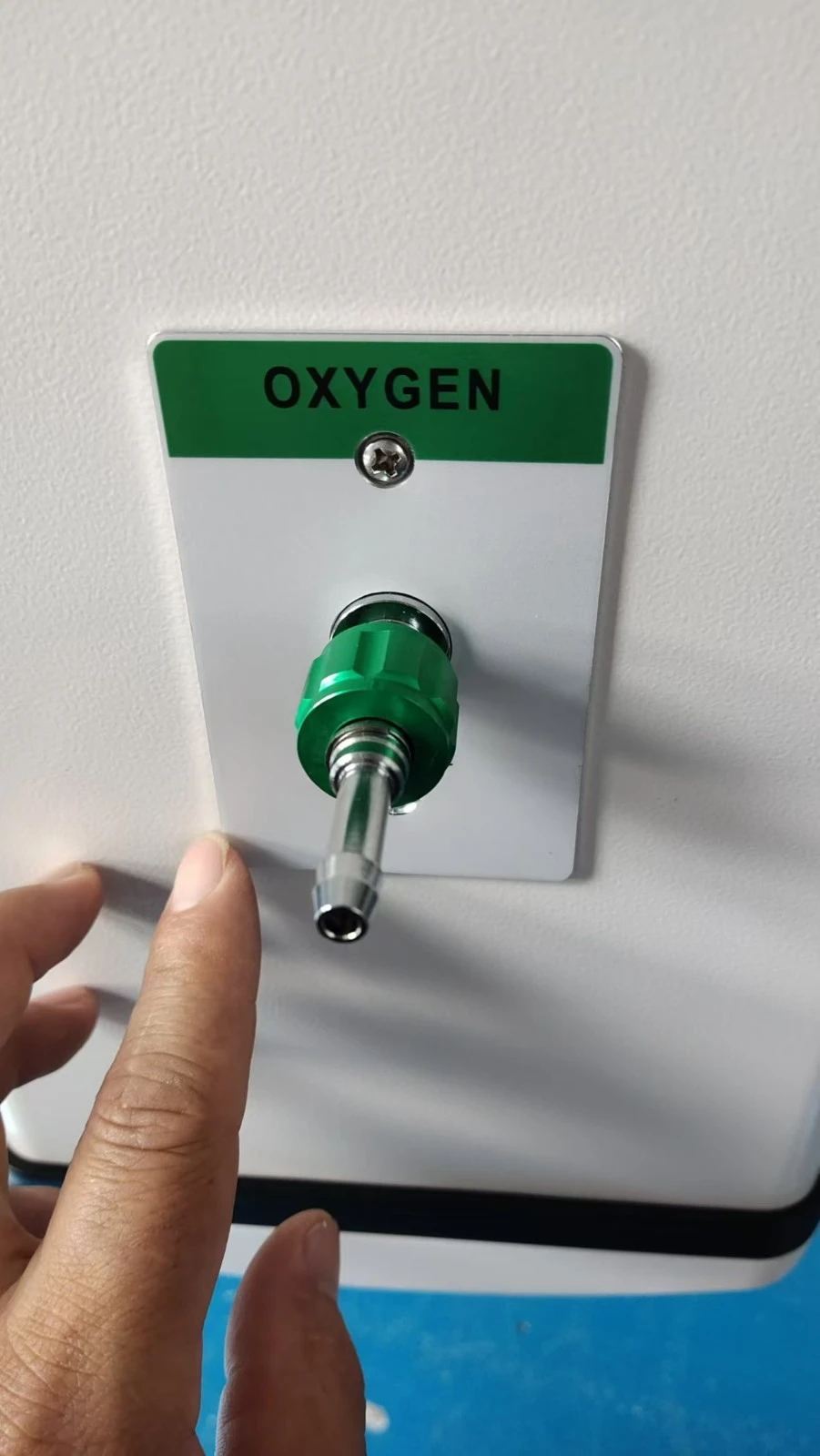

• Gas terminals are CE‑certified, with a plug/unplug cycle life of more than 20,000 times. All gas interfaces must have three states – ON, OFF, and DISCONNECTED – and allow for hot‑swapping maintenance. Gas outlets shall be distinguished by internationally standard color codes and equipped with anti‑mismatch devices or structures to prevent incorrect gas connections.
• The tray dimensions are 430 mm × 520 mm × 28 mm. It is made of aluminum alloy using an integrated molding process (not aluminum splicing or sheet‑metal forming), with stainless steel side rails on the outside.
• The infusion pole cantilever is made of high‑strength precision‑cast aluminum, featuring a double‑arm foldable connection with an arm length of ≥320 mm × 320 mm and an arc‑shaped design.
• The infusion pole is made of stainless steel, with adjustable height positions. It can accommodate three or more infusion pumps or syringe pumps. It is equipped with an anti‑slip device. At the top, there is a damped telescoping saline bottle (bag) holder that can be adjusted to any height, fitted with four saline bottle (bag) hooks.
• Power sockets comply with national standards and have passed CCC certification.
• The drawer is equipped with a concealed bottom guide rail with a damping mechanism; the rail precision can reach 0.03 mm, and it has passed fatigue testing with a service life of more than 100,000 cycles.
• A base stand is fabricated according to the room height, featuring robust and durable construction with steel thickness of no less than 12 mm. The base stand is pre‑reserved, and the manufacturer's engineers will carry out on‑site installation.

Standard Column Configuration

2 oxygen outlets

2 vacuum suction outlets

1 carbon dioxide outlet

1 compressed air outlet

5 electrical sockets

1 IV pole

1 handrail

2 high‑quality trays (one with a drawer)

4 side rails

2 network interfaces

2 grounding terminals

1 stainless steel mesh basket
