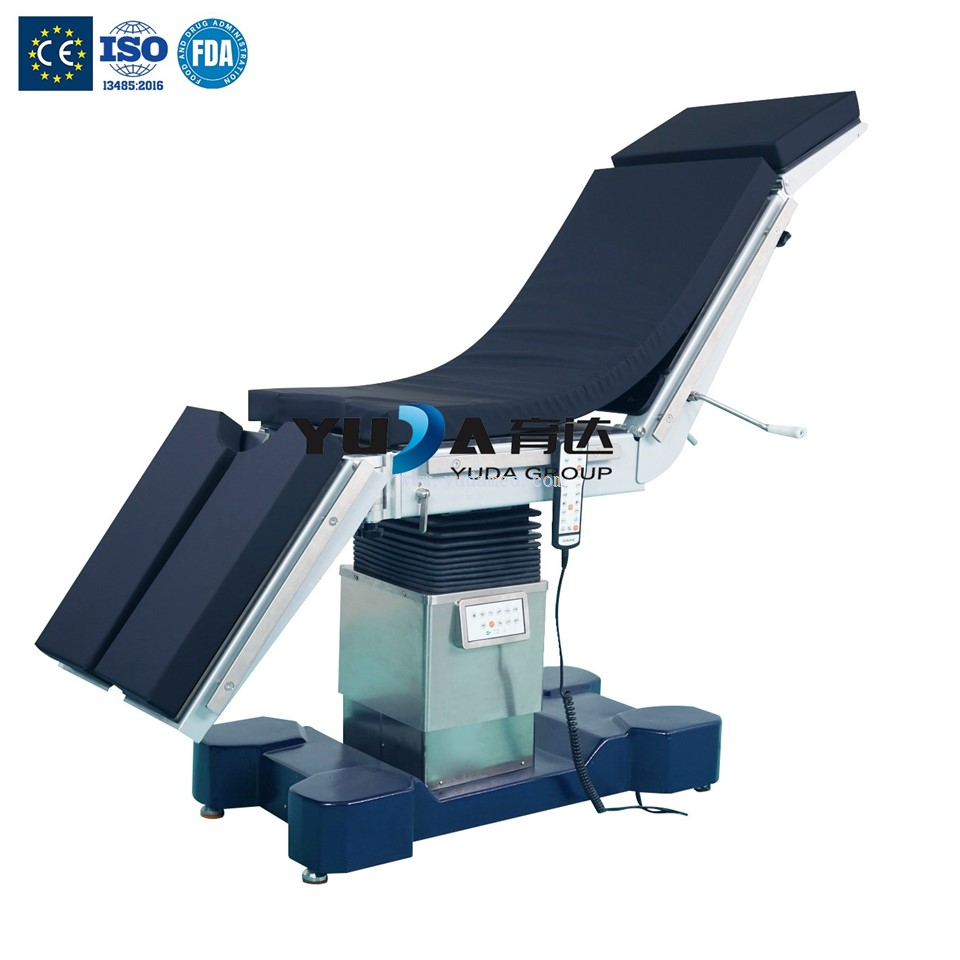

FDA Approved Electric Operating Table
Model: DST-700Q ( Apha Series )
Name: FDA approved electric operating table
YUDA medical new Apha series GM-700Q electric surgical table, featuring Maquet similar design with customized function. Its new improved advanced outlook on base exudes a magnetism of ergonomic and advanced modern OR room demands, making it the top choice for modern surgical settings. Additionally, the inclusion of an automatic locking mechanism in the manual controller ensures safety, and the pause during the return to the original position enhances overall control and precision.
Except general function, it also has flex/ reflex function, CPR function, and head board & leg board exchange function.
Technical Parameter
|
Model DST-700Q |
PARAMETER |
|
Tabletop size |
2100x500mm |
|
Tabletop Height |
Max920±20mm ; Min 660±20mm ( could customize) |
|
Trendelenburg/Reverse trendelenburg |
Up20±2°; Down 20±2° ( could customize) |
|
Lateral Tilt(Left and Right) |
Left tilt:25±2° ; Right tilt: 25±2° ( could customize) |
|
Leg Board |
Up15±2° ; Down 90±2° ; Leg Board Abduction:180° ( could customize) |
|
Back Panel |
Up:70±2° ; Down: 20±2° ( could customize) |
|
Head Plate |
Up:43±2° ; Down: 90±2° ( could customize) |
|
Longitudinal slide |
300 mm ( could customize) |
|
Kidney bridge elevation |
120 mm |
|
Flex/ reflex function |
Yes |
|
CPR function |
Yes |
|
Head and leg board exchange function |
Yes |
Standard accessory
Headrest 1pc
Armrest 1 pair
Waist support holder 1 pair
Shoulder support holder 1 pair
Leg support holder 1 pair
Footrest 1 pair
Anesthesia screen frame 1 pc
Body strap 1 set

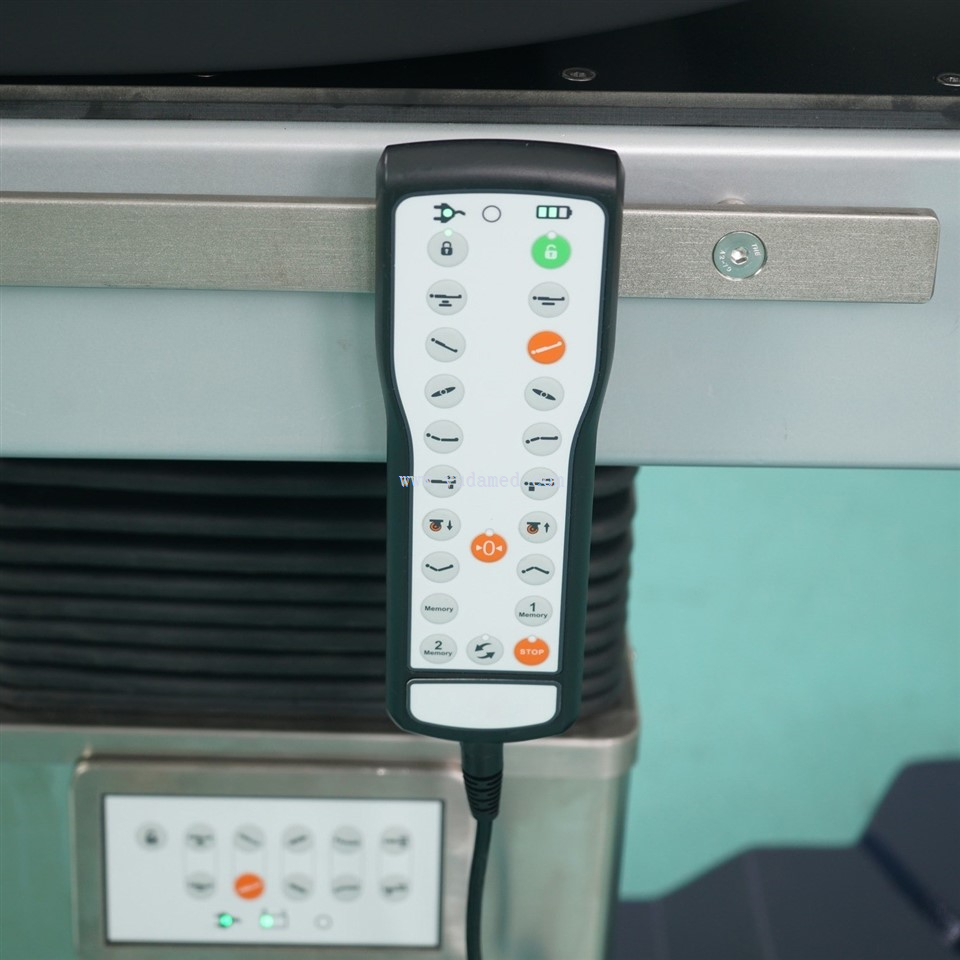

Handset controller 1 pc
